Sensor (stapler bin full receive) removal
1 Remove the right cover. See “Stapler right cover removal” on page 328.
2 Remove the left cover. See “Stapler left cover removal” on page 329.
3 Remove the rear cover. See “Stapler rear cover removal” on page 337.
4 Remove the stapler service cover. See “Stapler service cover removal” on page 341.
5 Disconnect the sensor cable CN18 from the stapler controller board.

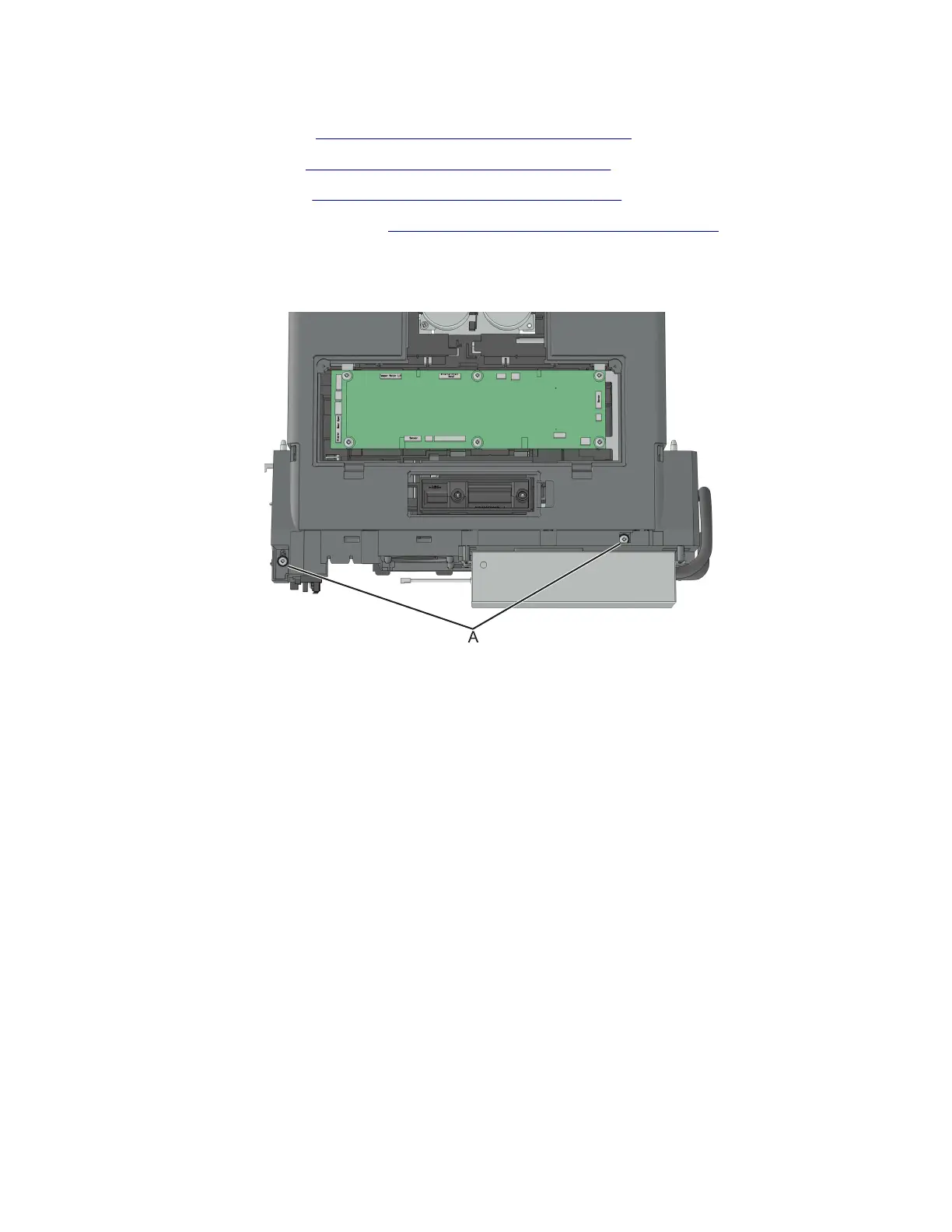

6 Remove the two screws (A) from the top cover.
