Lexmark XM3250 - Printer Paper Path

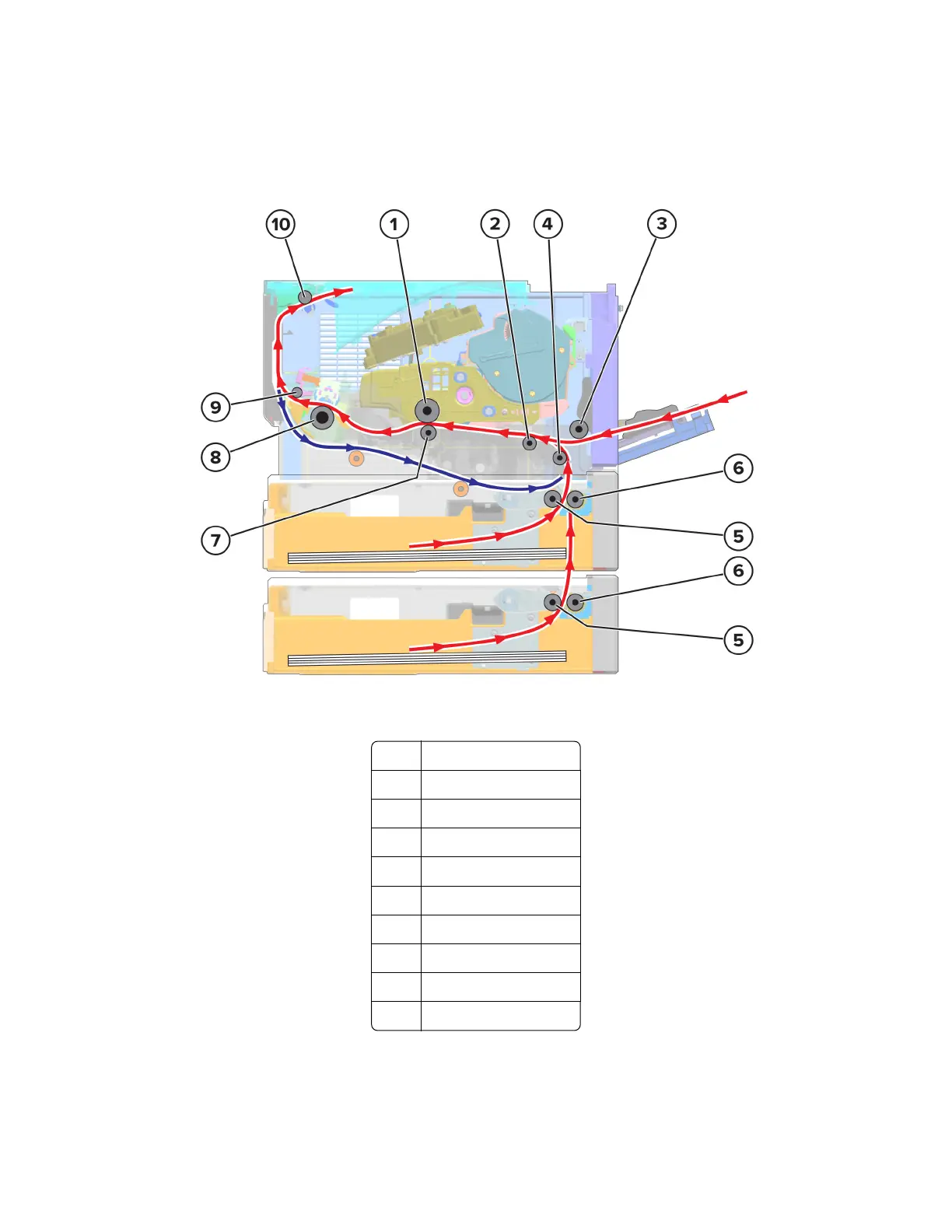

Printer paper path
One‑sided print job
1 Photoconductor drum
2 First input roller
3 MPF pick roller
4 Second input roller
5 Pick roller
6 Separator roller
7 Transfer roller
8 Fuser
9 Fuser exit roller
10 Paper exit roller
The pick roller picks and feeds the paper to the separator roller. The separator roller feeds the paper to the
second input roller, which feeds it to the first input roller. For MPF print jobs, the MPF pick roller picks and feeds
the paper to the first input roller.
