Lexmark XM3250 - ADF Left Hinge Removal

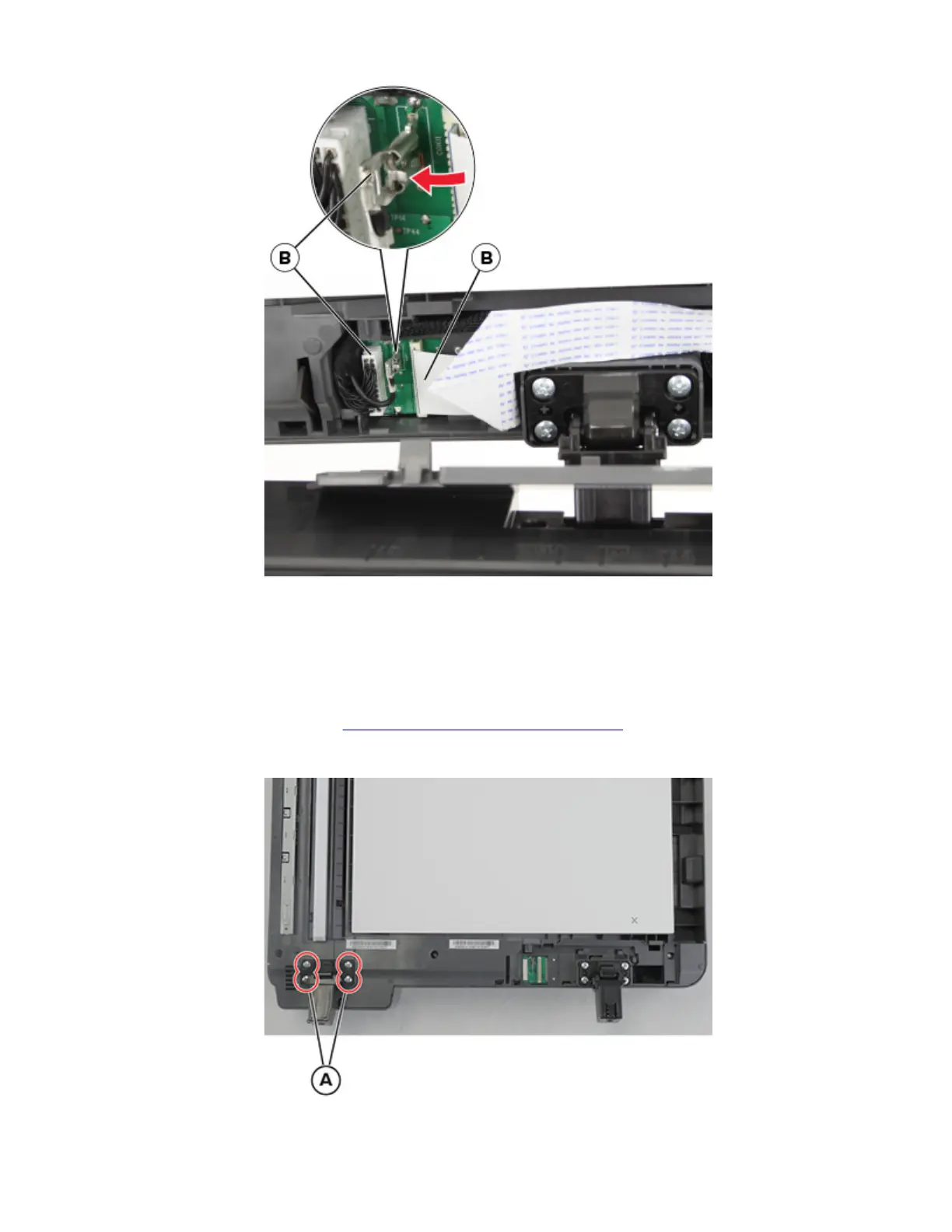

4 Release the cables
o
the assembly, and then remove the ADF.
Installation note: Pay attention to the routing of the cables.
ADF left hinge removal
1 Remove the ADF assembly. See “ADF assembly removal” on page 310.
2 Remove the four screws (A), and then remove the left hinge.
7018
Parts removal
311
