Stapler left cover removal

Note: This is not a FRU.

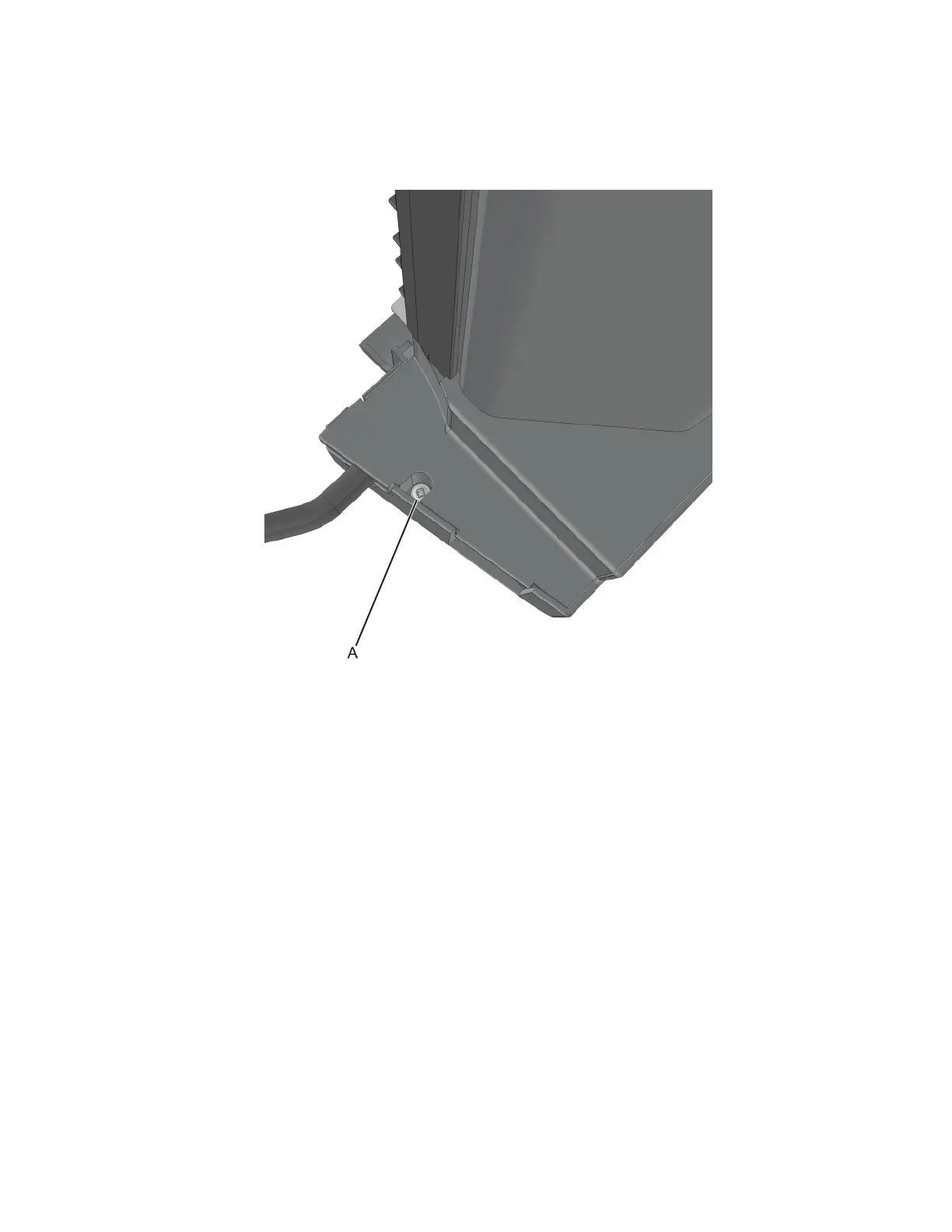

1 Remove the screw (A).

2 Remove the cover.

7018

Parts removal

329
