Optional staple ﬁnisher removals

Staple ﬁnisher option removal

Note: For a video demonstration, see Staple

ﬁnisher

installation.

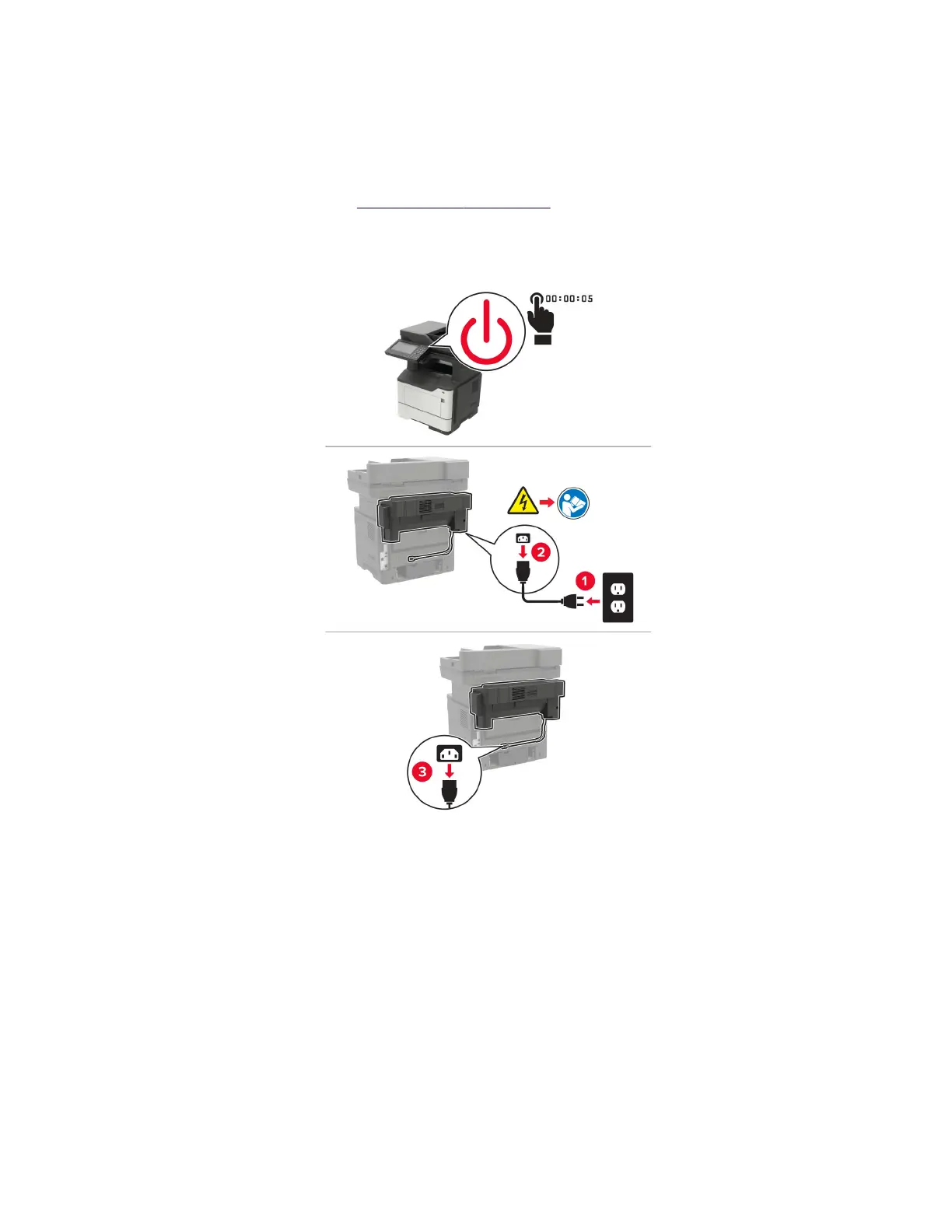

1 Turn o the machine, unplug it from its power source, and then disconnect the staple ﬁnisher power cable

from the printer.

7018
