Sensor (stapler pass through) removal

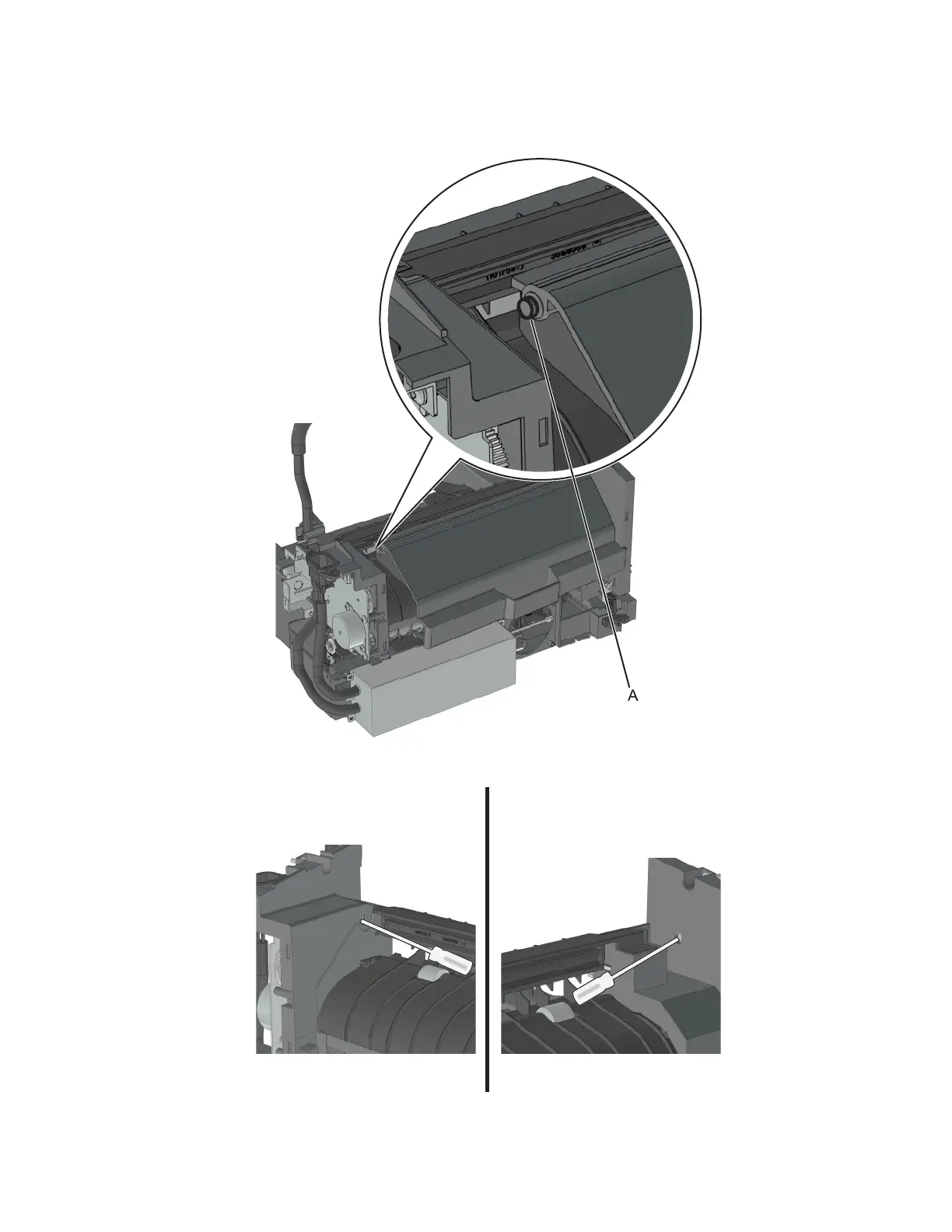

1 Flex the media access door to release the tab (A), then remove.

2 Using a ﬂat-blade screwdriver, release the latches, then remove the input cover.

7018

Parts removal

357
