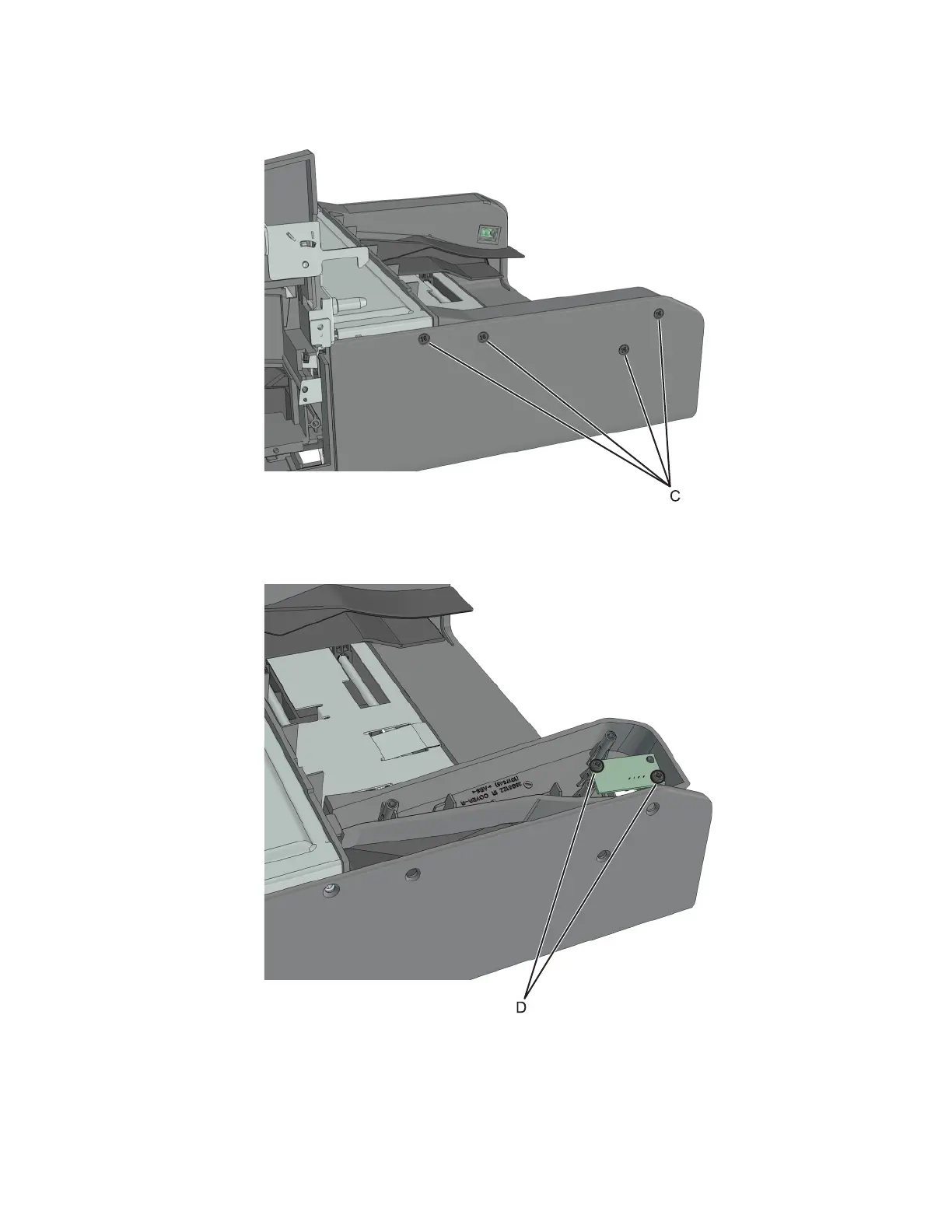

8 Remove the four screws (C) from the right side of the cover.
9 To access the sensor, release the sensor cover from the right side of the top cover.
10 Remove the two screws (D) securing the sensor.
11 Release the sensor cable, and then remove the sensor.
Note: Pay attention to the original route of the cable.
7018
Parts removal
356
