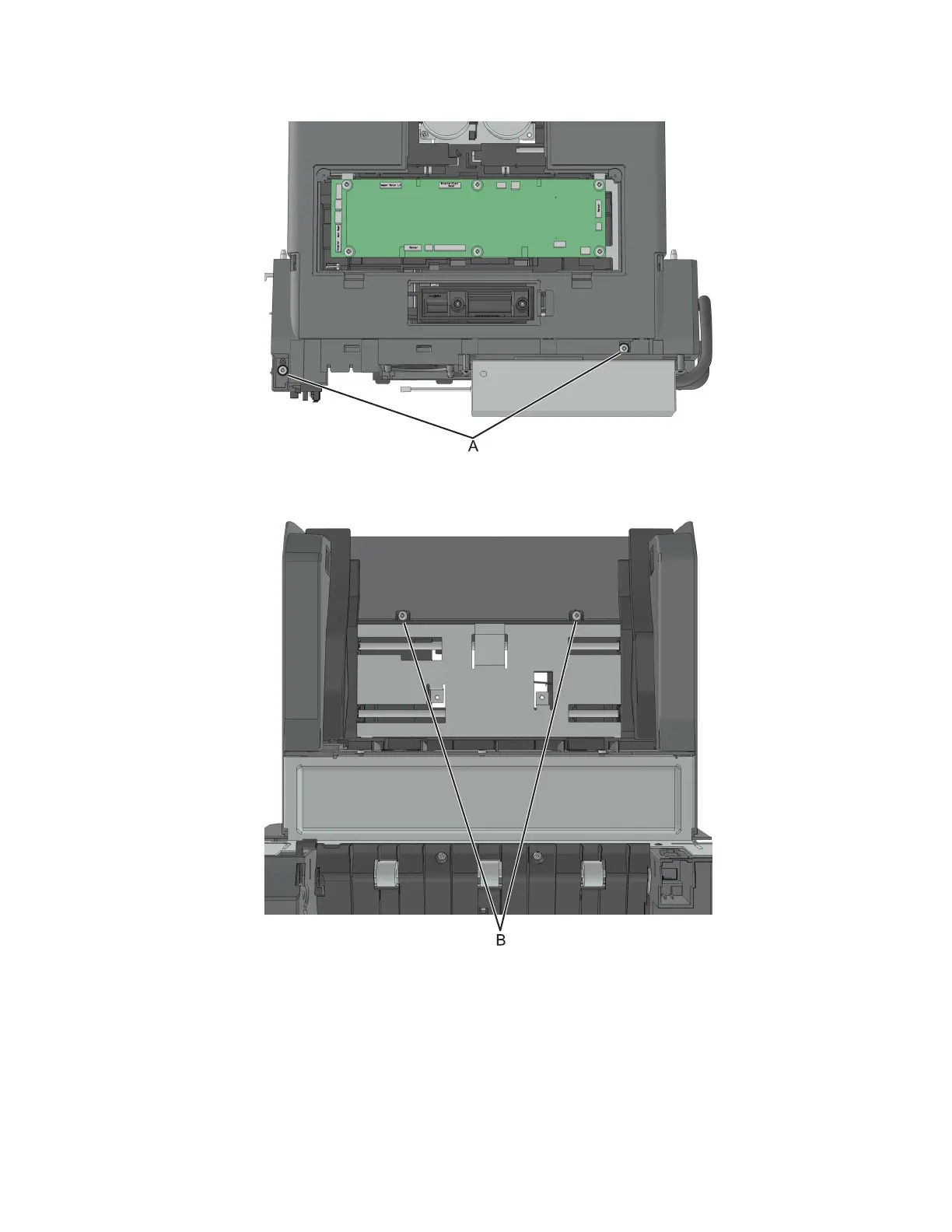

6 Remove the two screws (A) from the top cover.

7 Remove the two screws (B) under the cover.

7018

Parts removal

355
