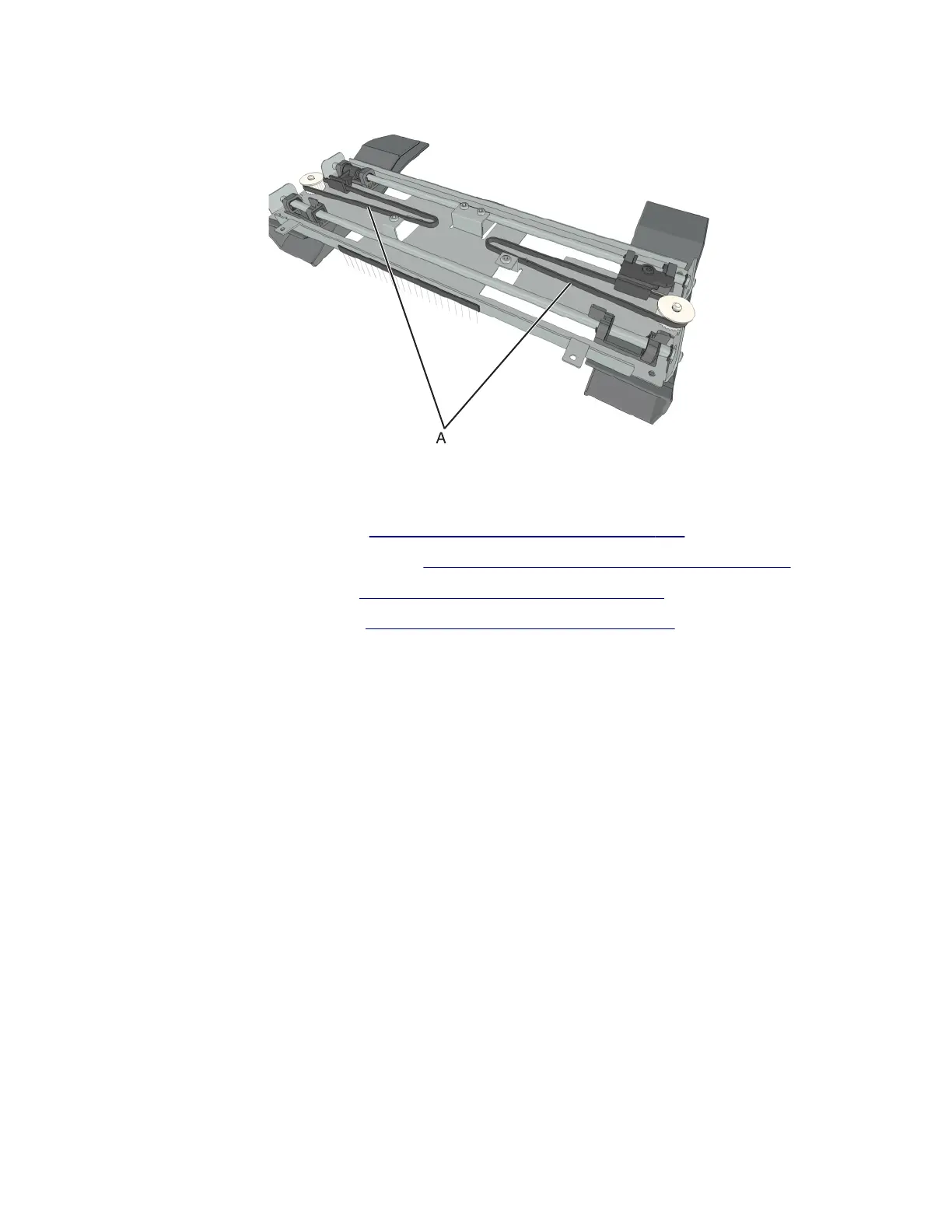

12 Remove the tamper drive belts (A).
Diverter gearbox removal
1 Remove the stapler right cover. See “Stapler right cover removal” on page 328.
2 Remove the stapler carriage assembly. See “Stapler carriage assembly removal” on page 331.
3 Remove the stapler left cover. See “Stapler left cover removal” on page 329.
4 Remove the stapler rear cover. See “Stapler rear cover removal” on page 337.
7018
Parts removal
363
