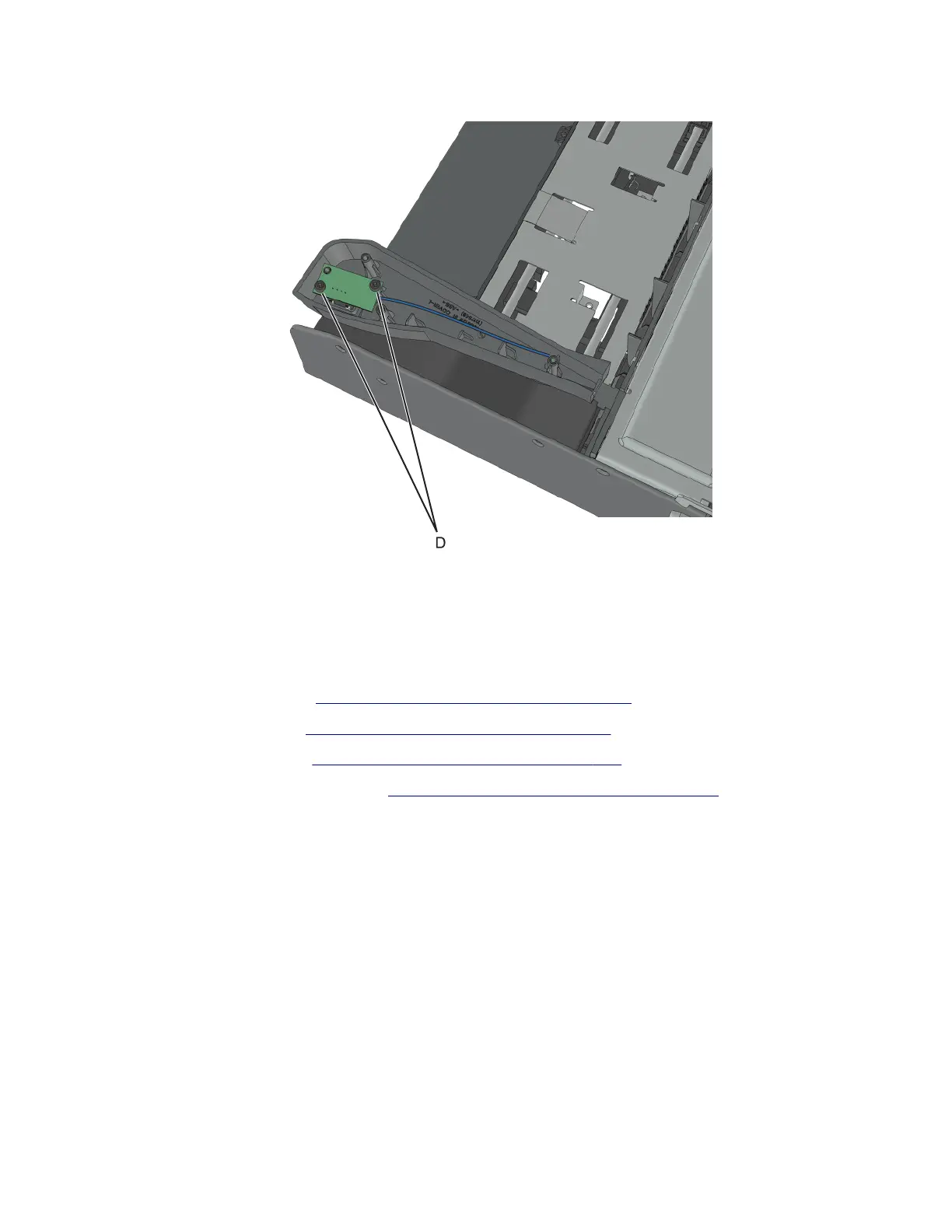

10 Remove the two screws (D) securing the sensor.
11 Release the sensor cable from its route, and then remove the sensor.
Note: Pay attention to the original route of the cables.
Sensor (stapler bin full send) removal
1 Remove the right cover. See “Stapler right cover removal” on page 328.
2 Remove the left cover. See “Stapler left cover removal” on page 329.
3 Remove the rear cover. See “Stapler rear cover removal” on page 337.
4 Remove the stapler service cover. See “Stapler service cover removal” on page 341.
5 Disconnect the sensor cable CN12 from the stapler controller board.
7018
