Stapler cooling fan removal
1 Remove the stapler right cover. See “Stapler right cover removal” on page 328.
2 Remove the stapler left cover. See “Stapler left cover removal” on page 329.
3 Remove the stapler rear cover. See “Stapler rear cover removal” on page 337.
4 Remove the stapler service cover. See “Stapler service cover removal” on page 341.
5 Disconnect the cooling fan cable CN8 from the stapler controller board.

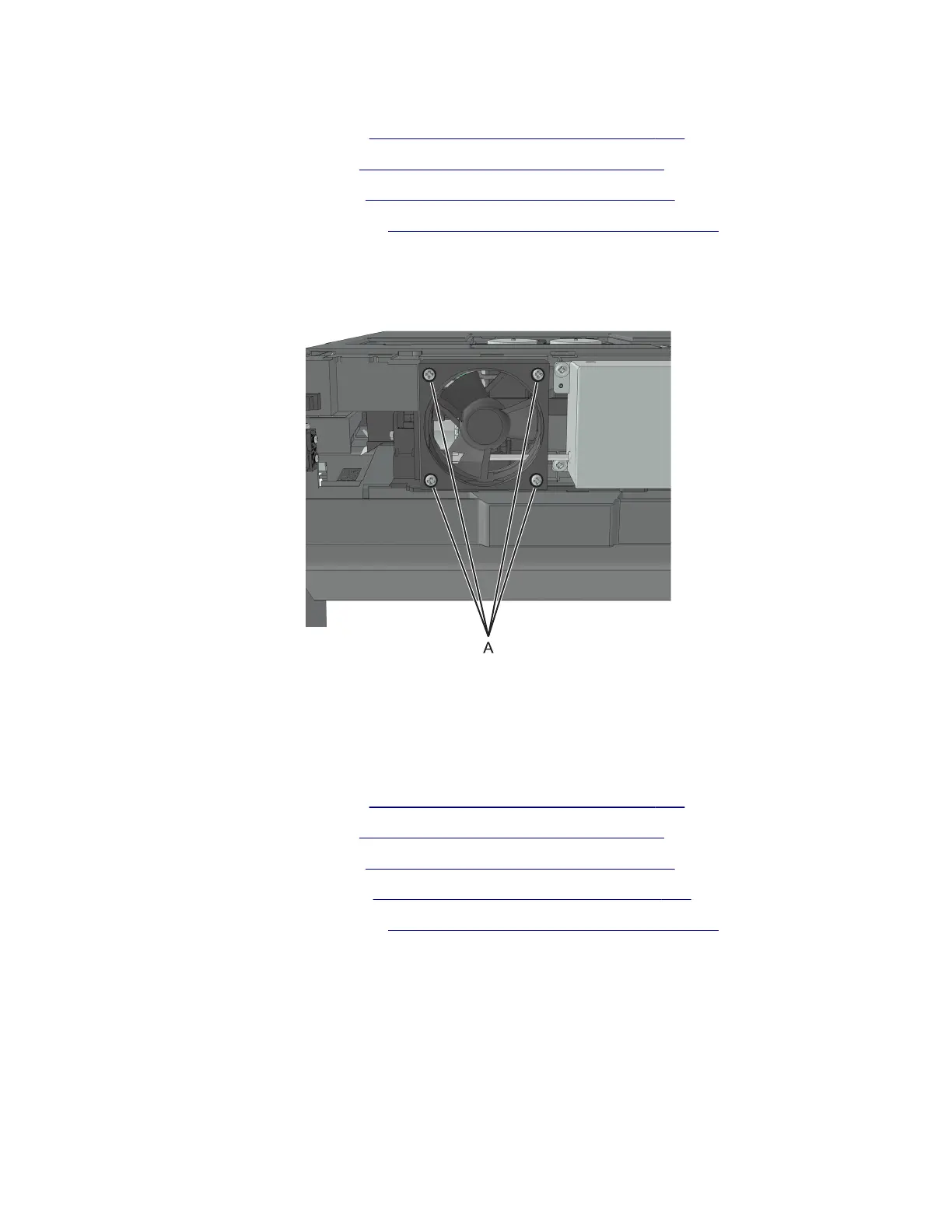

6 Remove the four screws (A).
7 Release the fan cable, and then remove the fan.
Note: Pay attention to the original route of the cable.
Stapler power supply unit removal
1 Remove the stapler right cover. See “Stapler right cover removal” on page 328.
2 Remove the stapler left cover. See “Stapler left cover removal” on page 329.
3 Remove the stapler rear cover. See “Stapler rear cover removal” on page 337.
4 Remove the stapler cooling fan. See “Stapler cooling fan removal” on page 345.
5 Remove the stapler service cover. See “Stapler service cover removal” on page 341.
6 Disconnect the power supply cable CN5 from the stapler controller board.
7018
