ADF assembly removal

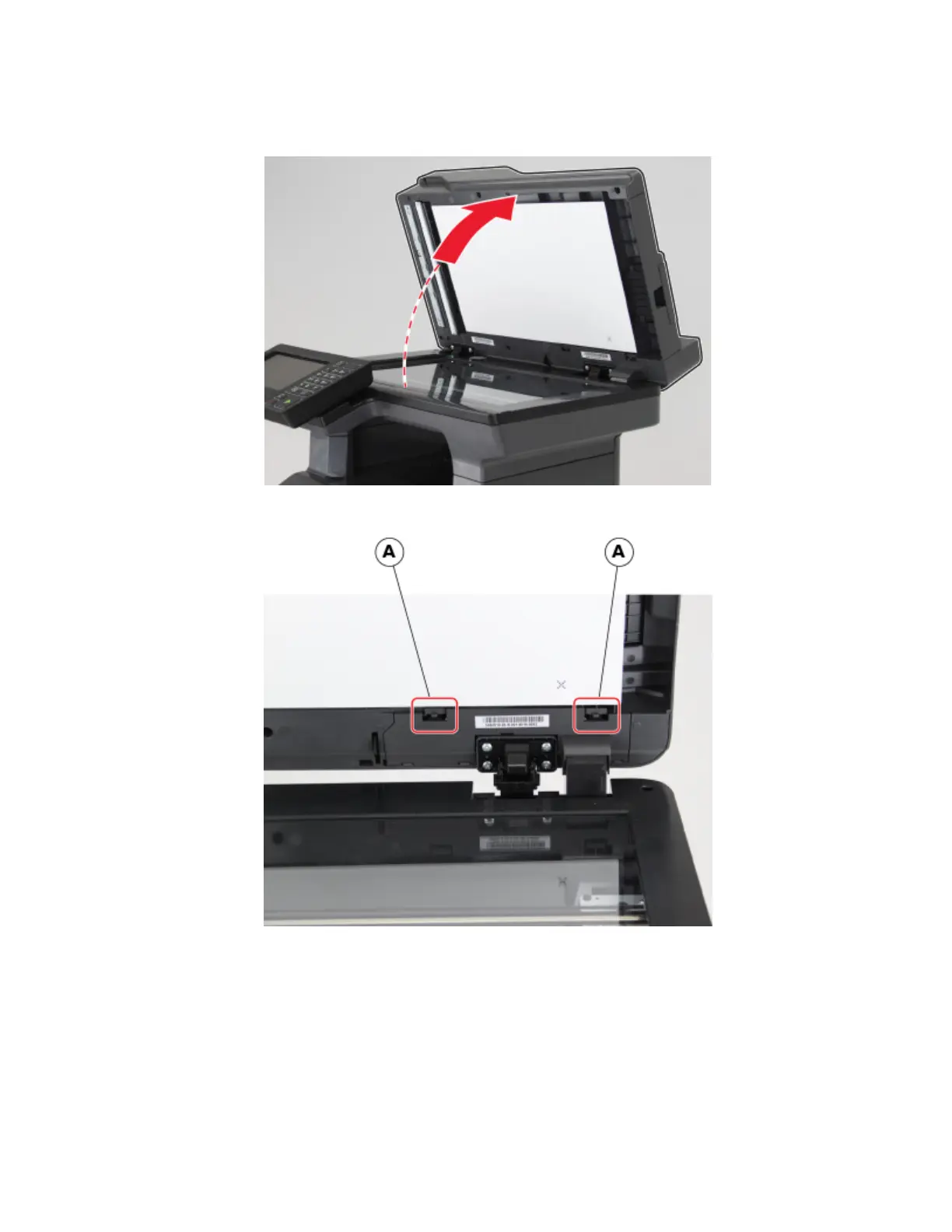

1 Open the ADF.

2 Release the two latches (A) to open the ADF controller board access cover.

3 Disconnect the three cables (B).

Note: To disconnect the grounding cable, press the tab ﬁrst and then pull.

7018

Parts removal

310
