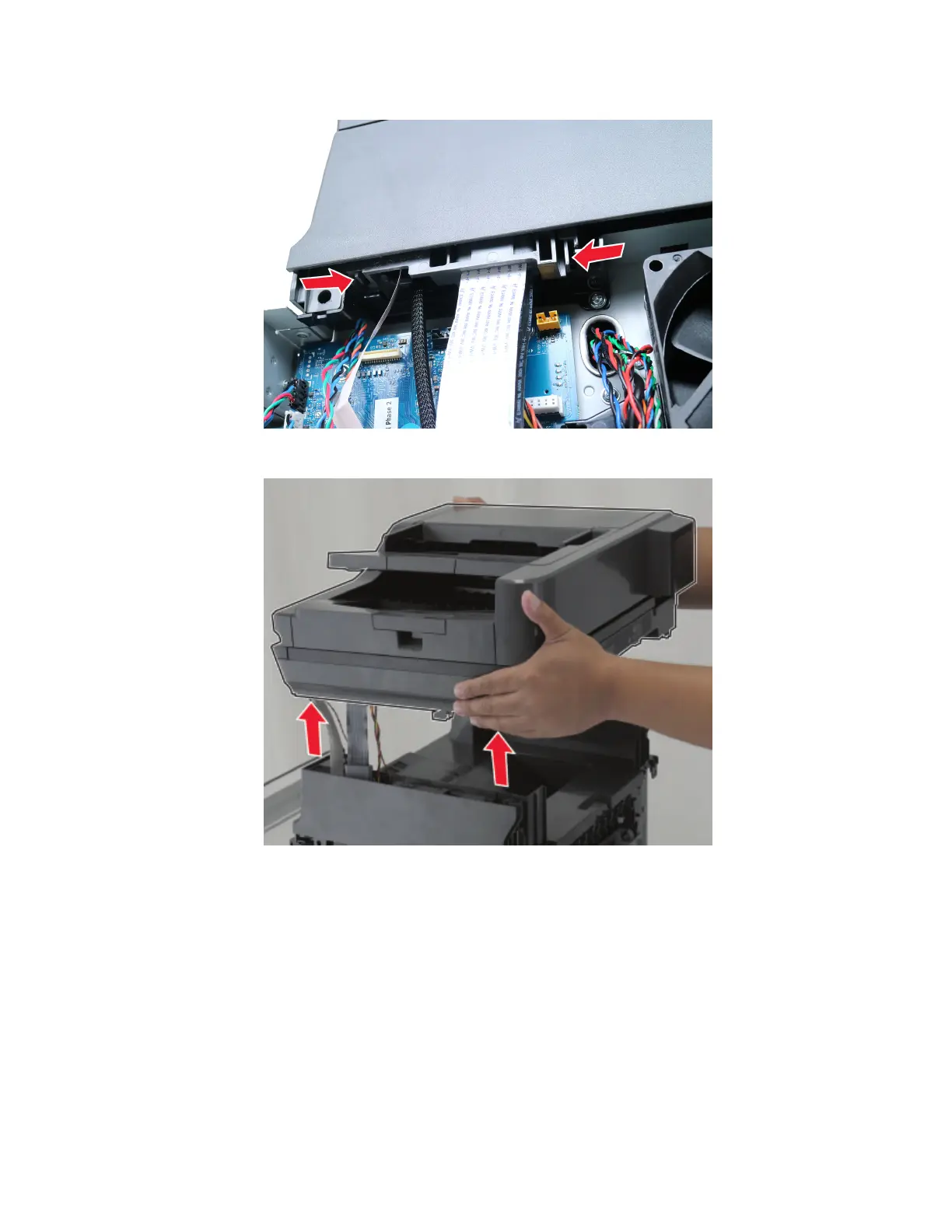

5 Release the latches, and then remove the toroid holder to release the ﬂat cables.

6 Remove the scanner assembly.

7018

Parts removal

309
