Sensor (index) removal
1 Remove the rear cover. See “Rear door and cover removal” on page 295.
2 Remove the power supply. See “Power supply removal” on page 273.
3 Remove the duplex. See “Duplex removal” on page 275.
4 Remove the right cover. See “Right cover removal” on page 237.
5 Disconnect the cable JINDEX1.

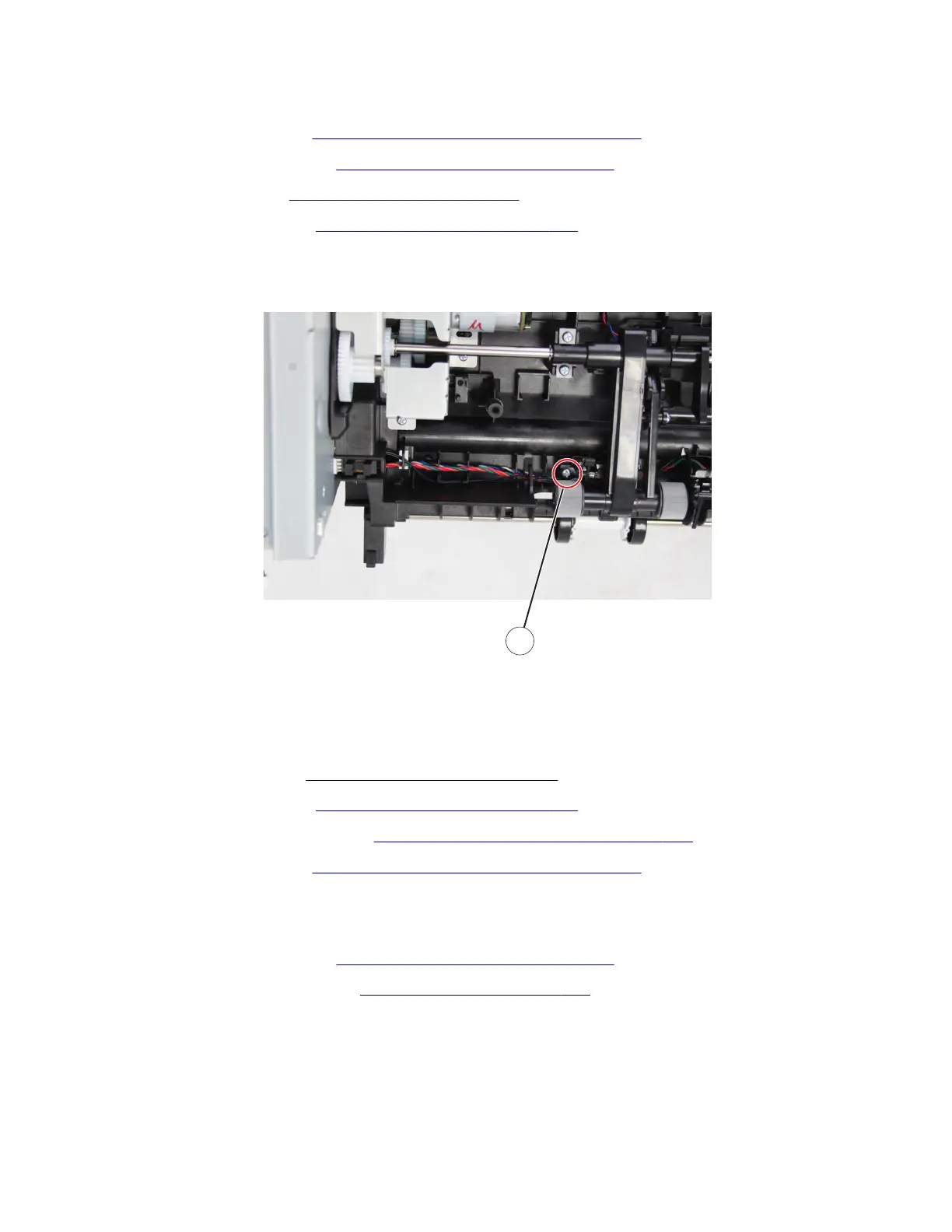

6 Remove the screw (A).
A
7 Remove the sensor.
Pick roller assembly removal
1 Remove the left cover. See “Left cover removal” on page 226.
2 Remove the right cover. See “Right cover removal” on page 237.
3 Remove the scanner rear cover. See “Scanner rear cover removal” on page 294.
4 Remove the rear cover. See “Rear door and cover removal” on page 295.
5 Position the printer on its left side.
Warning—Potential Damage: The ADF might swing open while you position the printer on its side.
6 Remove the power supply. See “Power supply removal” on page 273.
7 Remove the duplex assembly. See “Duplex removal” on page 275.
7018
Parts removal
280
