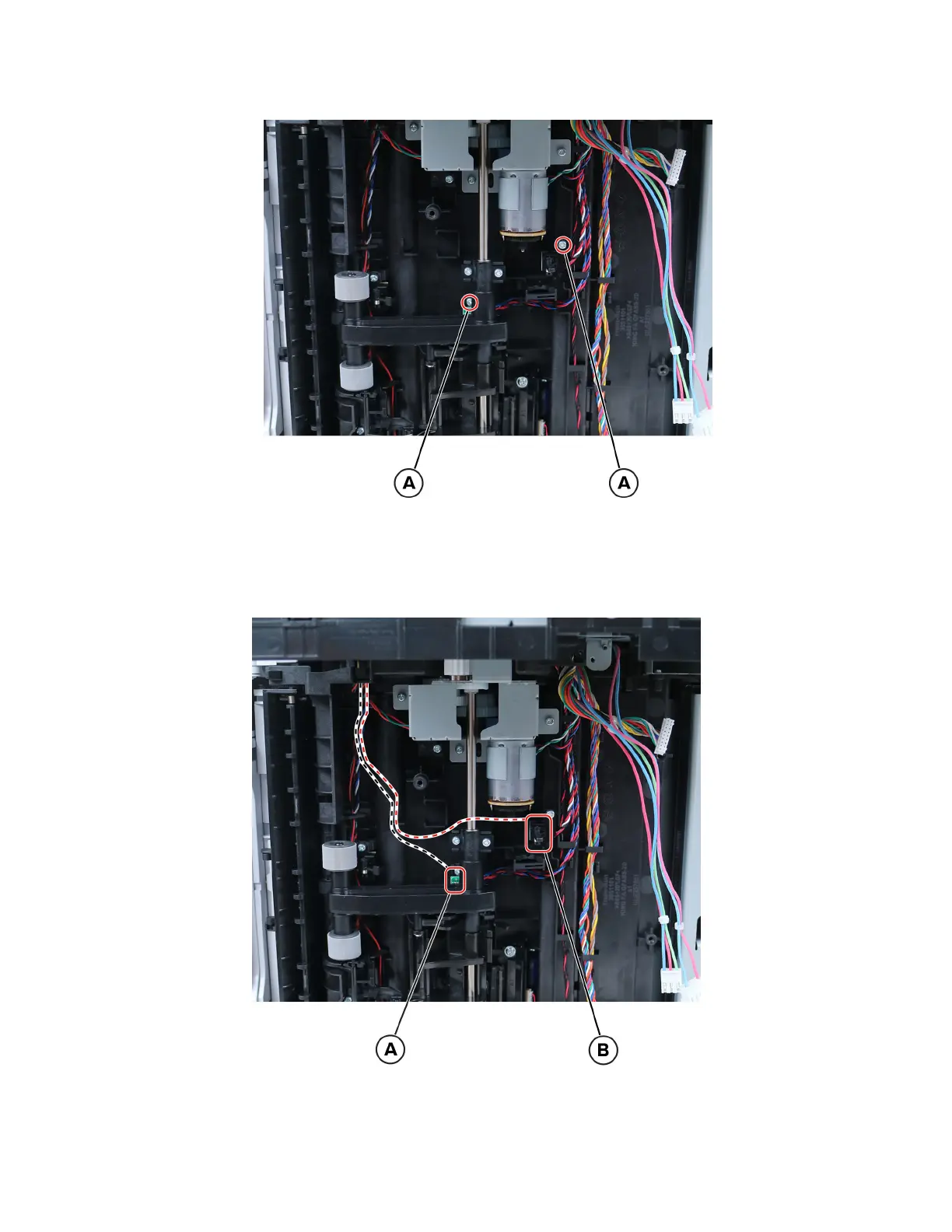

4 Remove the two screws (A), cut the cable near the frame, and then remove the sensors.
5 Open the controller board access cover, and then disconnect the cable JDUPPI1.
6 Remove the cables.
Installation note: Route the sensor (input) cable (A) and sensor (duplex) cable (B) as shown.
7018
Parts removal
279
