Lexmark XM3250 - Lift Cam Removal

6 Lift the pick roller assembly.
7 Disconnect the cable from the gearbox.
8 Remove the gearbox.
Lift cam removal
1 Remove the left cover. See “Left cover removal” on page 226.
2 Remove the main drive gearbox. See “Main drive gearbox removal” on page 227.
3 Remove the rear cover. See “Rear door and cover removal” on page 295.
4 Remove the power supply. See “Power supply removal” on page 273.
5 Remove the duplex. See “Duplex removal” on page 275.

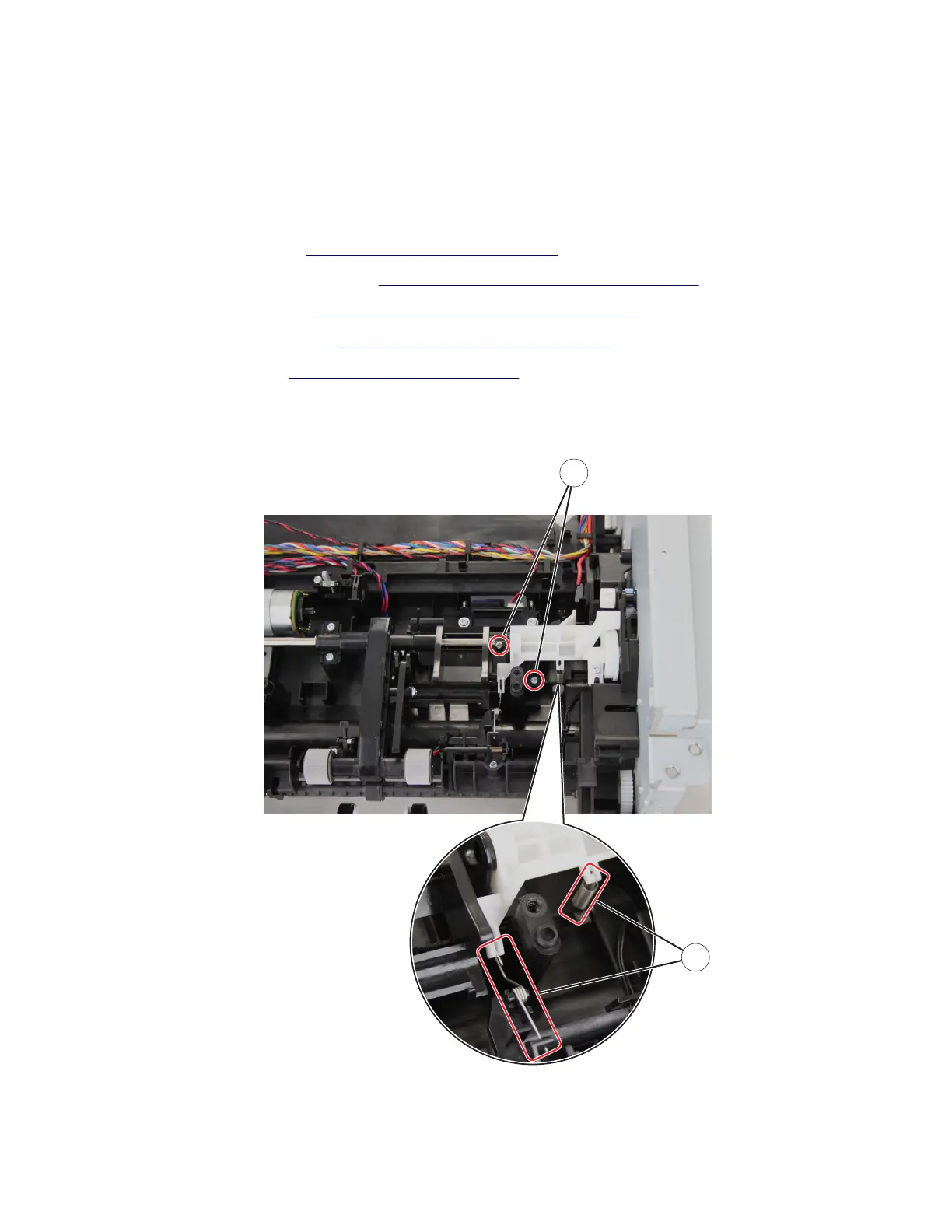

6 Remove the two screws (A).
7 Release the two springs (B).
B
A
8 Remove the cam.
7018
