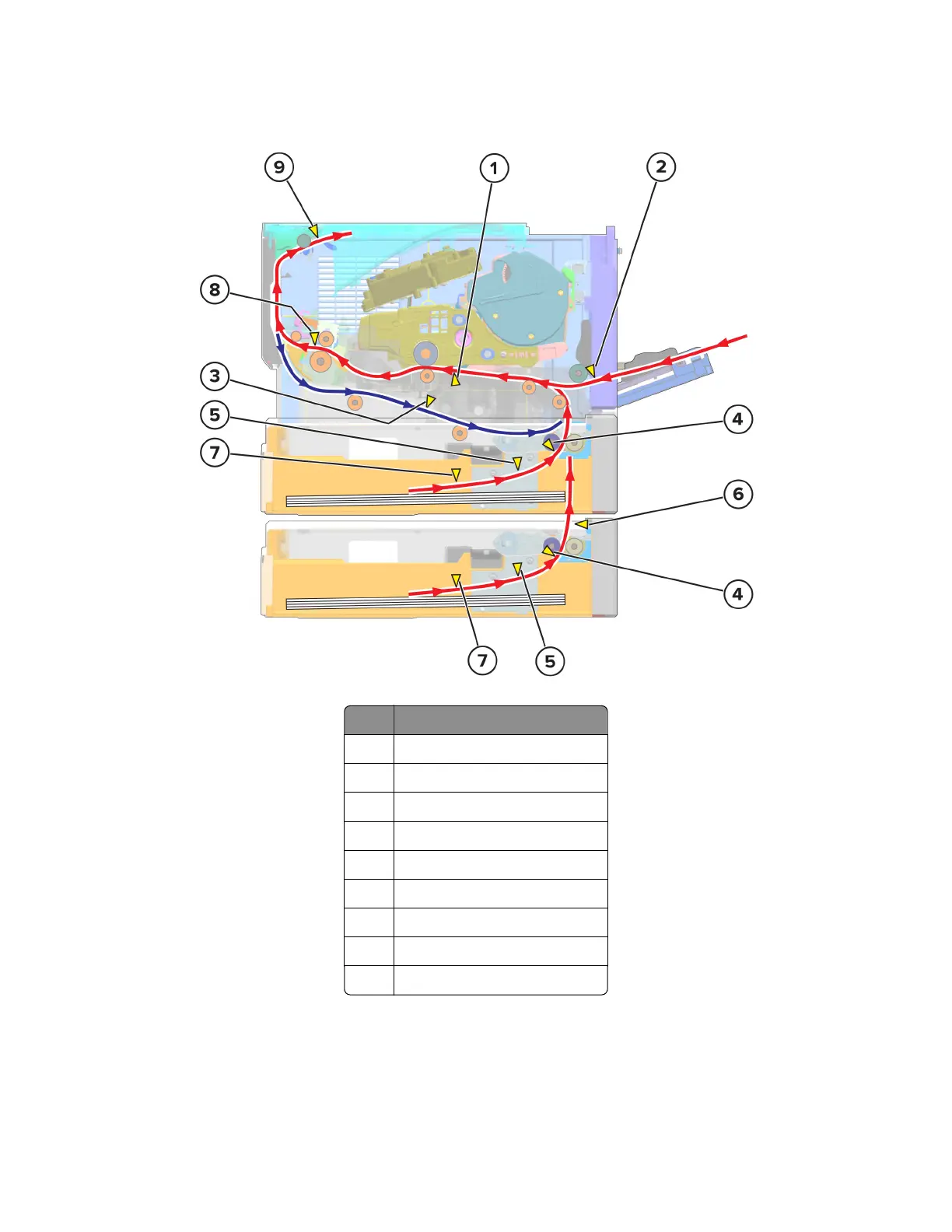

Printer sensor locations

# Sensor

1 Sensor (input)

2 Sensor (MPF paper present)

3 Sensor (duplex)

4 Sensor (index)

5 Sensor (trailing edge)

6 Sensor (pass-through)

7 Sensor (media present)

8 Sensor (fuser exit)

9 Sensor (narrow media/bin full)

7018

Component locations

374
