Lexmark XM3250 - ADF Tray Removal; Scanner Assembly Removal

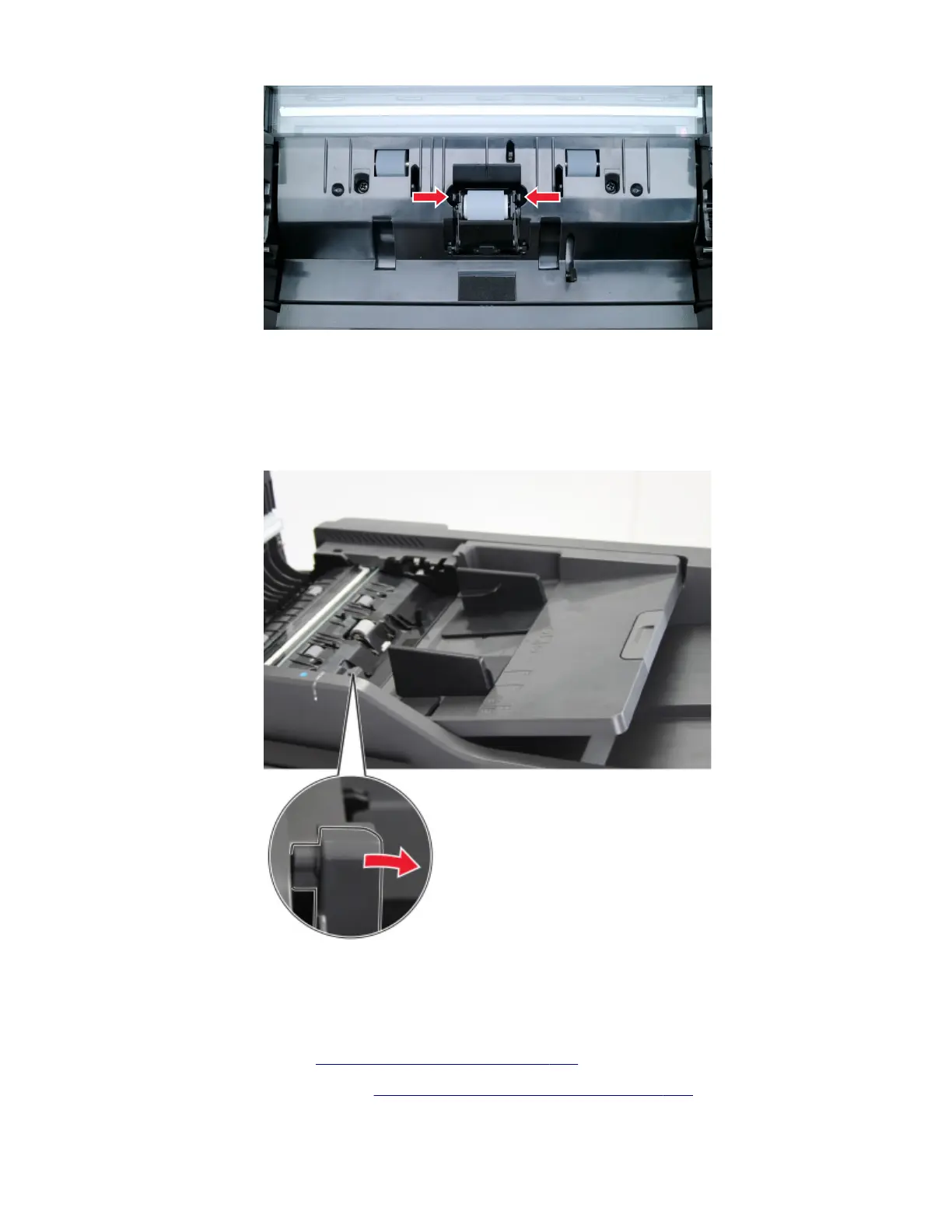

ADF tray removal
1 Open the ADF top cover.
2 Release the left latch, and then remove the tray.
Scanner assembly removal
Note: Not a FRU.
1 Remove the right cover. See “Right cover removal” on page 237.
2 Remove the scanner rear cover. See “Scanner rear cover removal” on page 294.
7018
Parts removal
307
