Stapler rear door removal

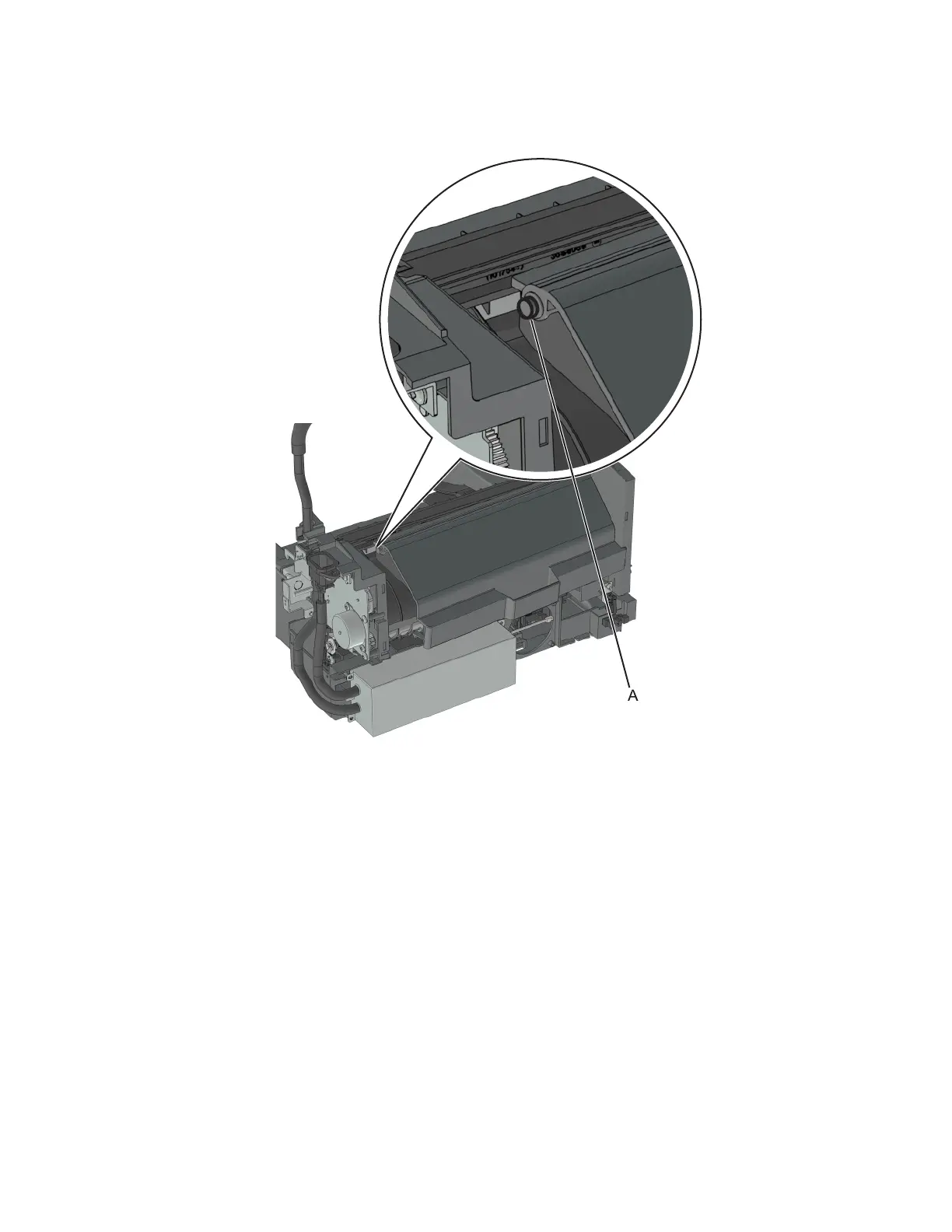

1 On the bottom of the staple

ﬁnisher,

ﬂex

the stapler rear door to release the pin (A).

2 Remove the stapler rear door.

7018

Parts removal

330
