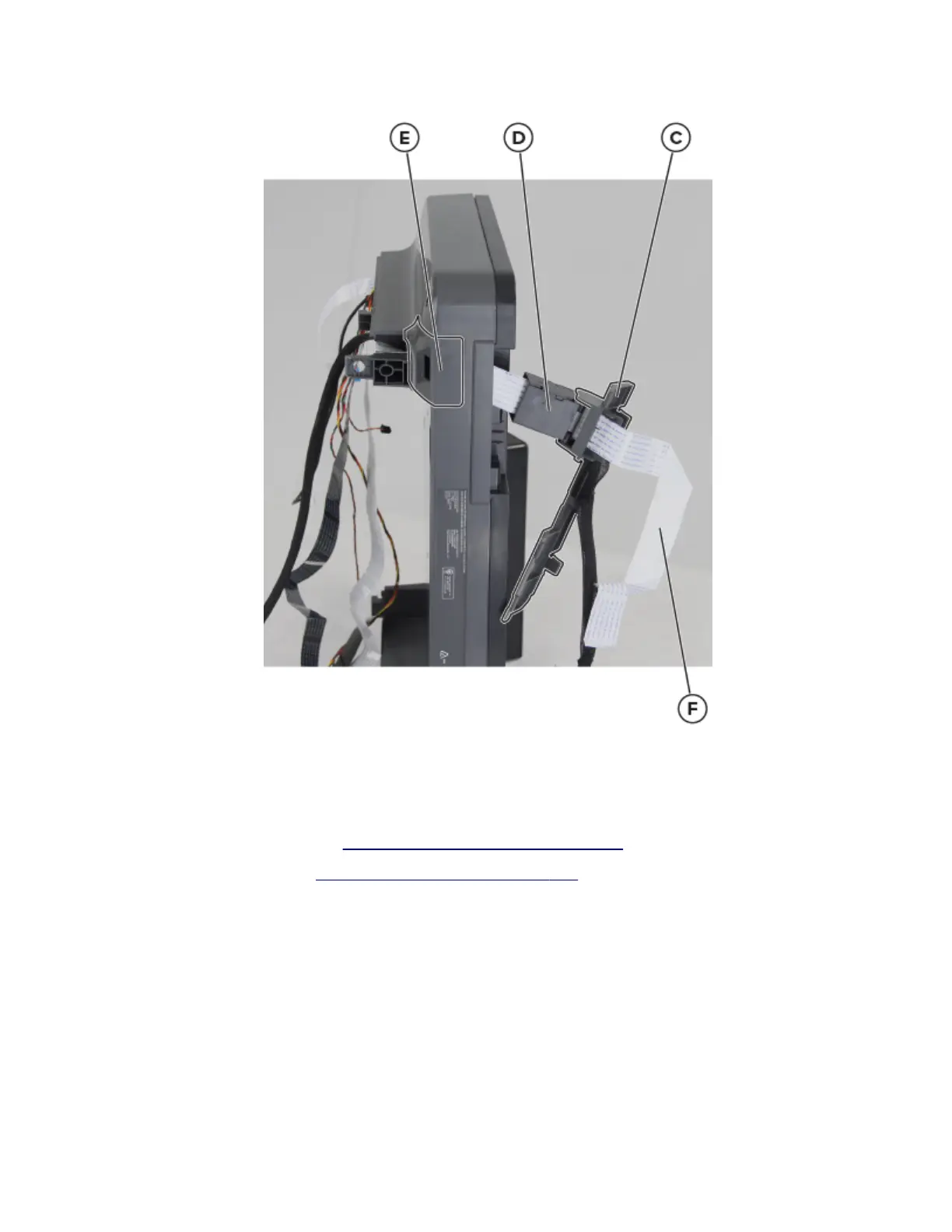

8 Route the flat cable (F) o the flatbed assembly, and then remove.
Note: Pay attention to the routing of the ADF flat cable and of the double‑sided part of the cable.
ADF cable removal
1 Remove the ADF assembly. See “ADF assembly removal” on page 310.
2 Remove the right cover. See “Right cover removal” on page 237.
3 Remove the screw (A), and then disconnect the following cables from the controller board:
• Control panel cable
• Speaker cable
• ADF cable
• ADF scanner cable
• CIS cable
7018
Parts removal
318
