Lexmark XM3250 - Page 319

4 Remove the scanner rear cover. See “Scanner rear cover removal” on page 294.

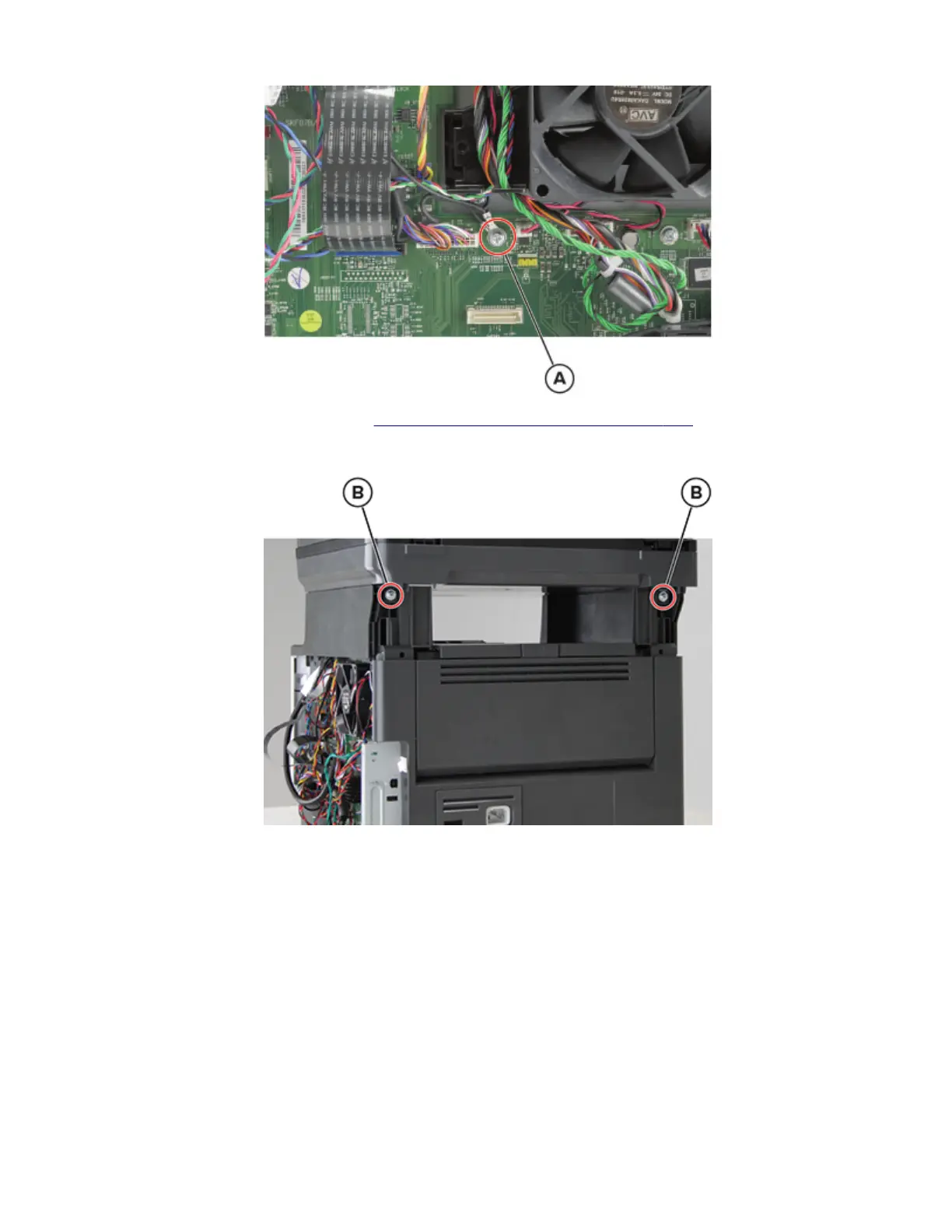

5 Remove the two screws (B).
6 Remove the flatbed scanner assembly.
7 Remove the ADF controller board cover (B) and the holder (C), and then remove the scanner cable cover
(D).
7018
Parts removal
319
