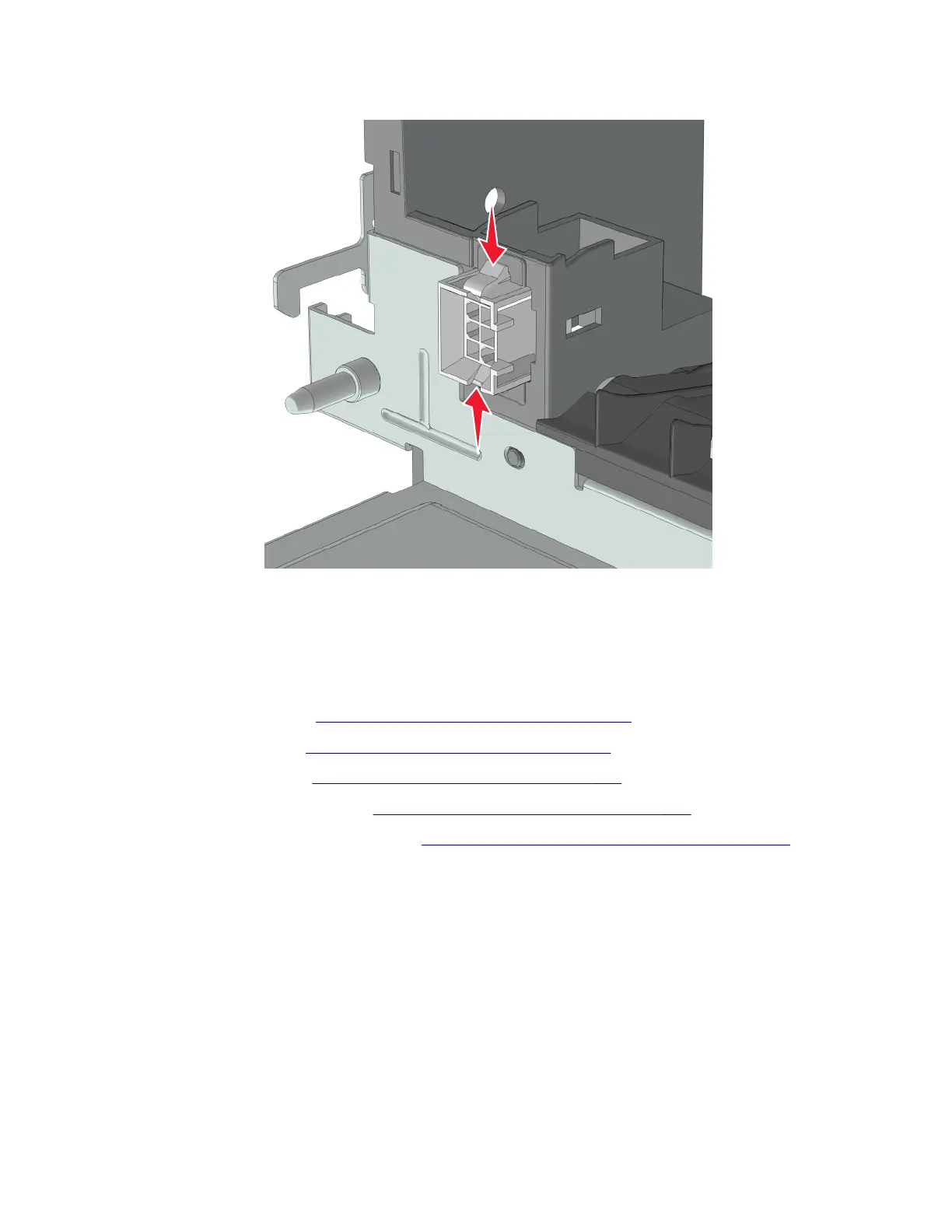

5 Release the latches, and then dislodge the interface cable.
6 Release the cable from its route, and then remove it.
Note: Pay attention to the original route of the cable.
Stapler top cover removal
1 Remove the right cover. See “Stapler right cover removal” on page 328.
2 Remove the left cover. See “Stapler left cover removal” on page 329.
3 Remove the rear cover. See “Stapler rear cover removal” on page 337.
4 Remove the stapler cooling fan. See “Stapler cooling fan removal” on page 345.
5 Remove the stapler power supply unit. See “Stapler power supply unit removal” on page 345.
7018
Parts removal
349
