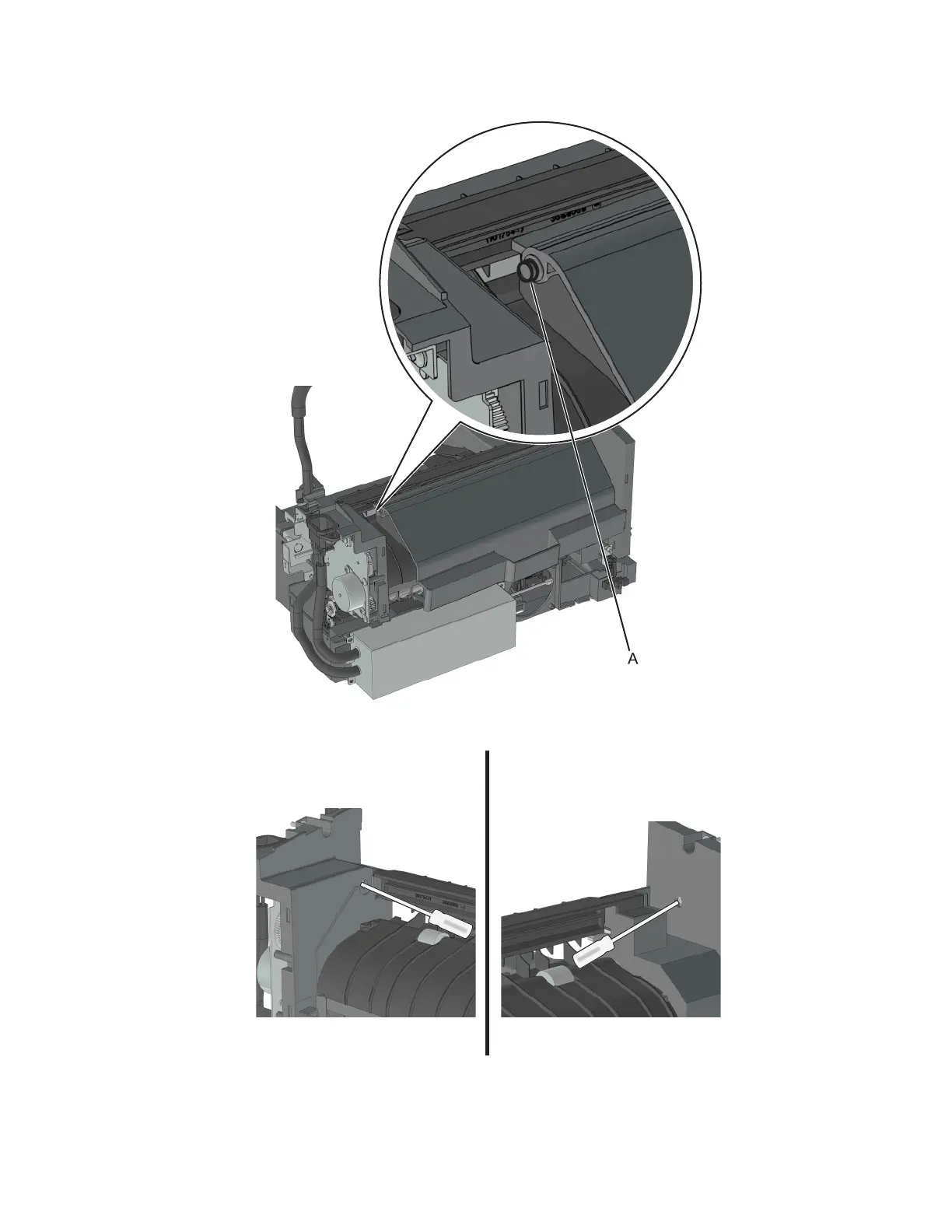

3 Flex the media access door to release the tab (A), and then remove it.

4 Release the latches using a ﬂat‑blade screwdriver, and then remove the input cover.

7018

Parts removal

348
