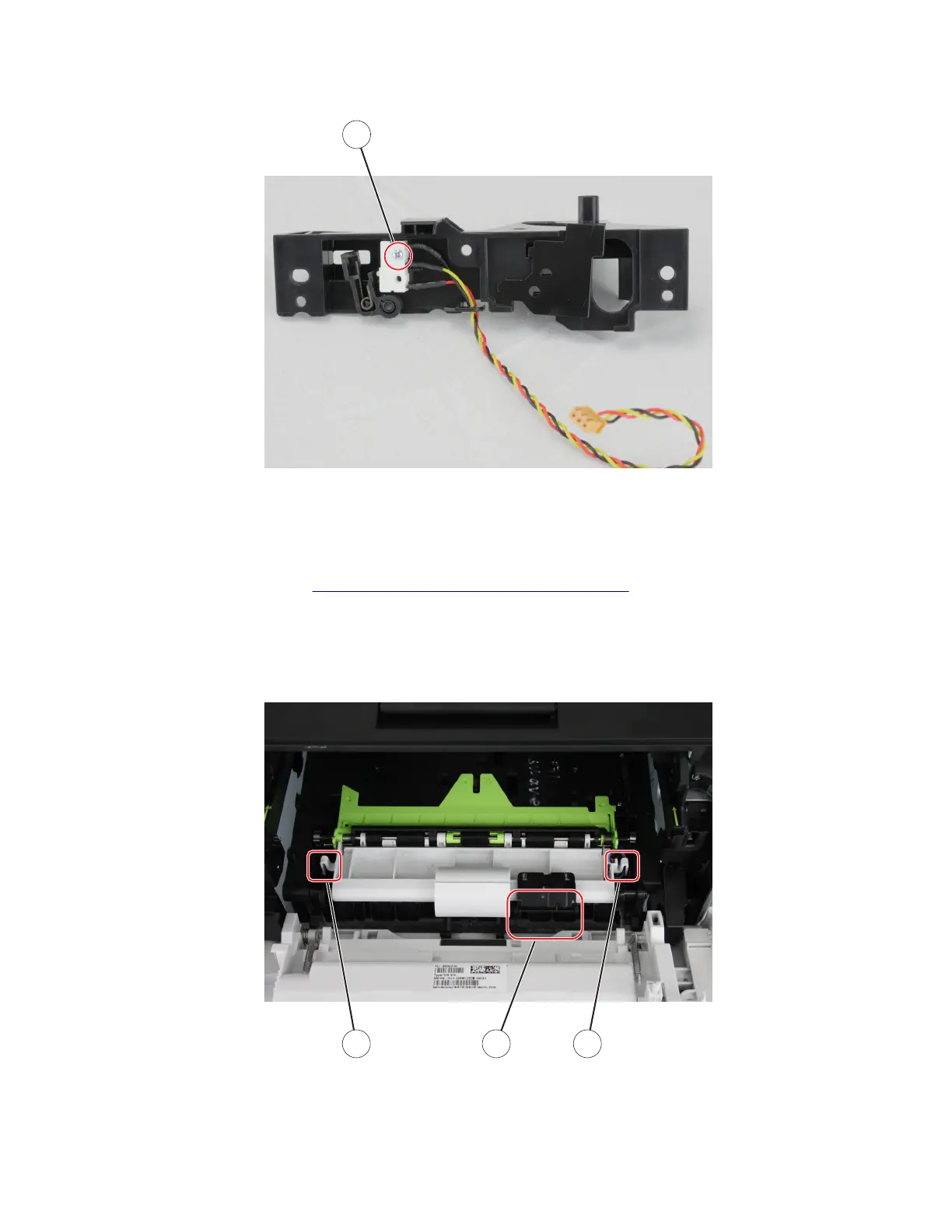

5 Using a #1 Phillips screwdriver, remove the screw (B).
B
6 Remove the sensor.
MPF pick roller and separator pad removal
For a video demonstration, see MPF pick roller and separator pad removal.
1 Open the front door.
2 Press the latches (A), and then open the cover.
Warning—Potential Damage: Avoid damaging the MPF sensor
flag
(B) when removing the cover.
A
A B
3 Using a #1 Phillips screwdriver, remove the two screws (C).
7018
Parts removal
267
