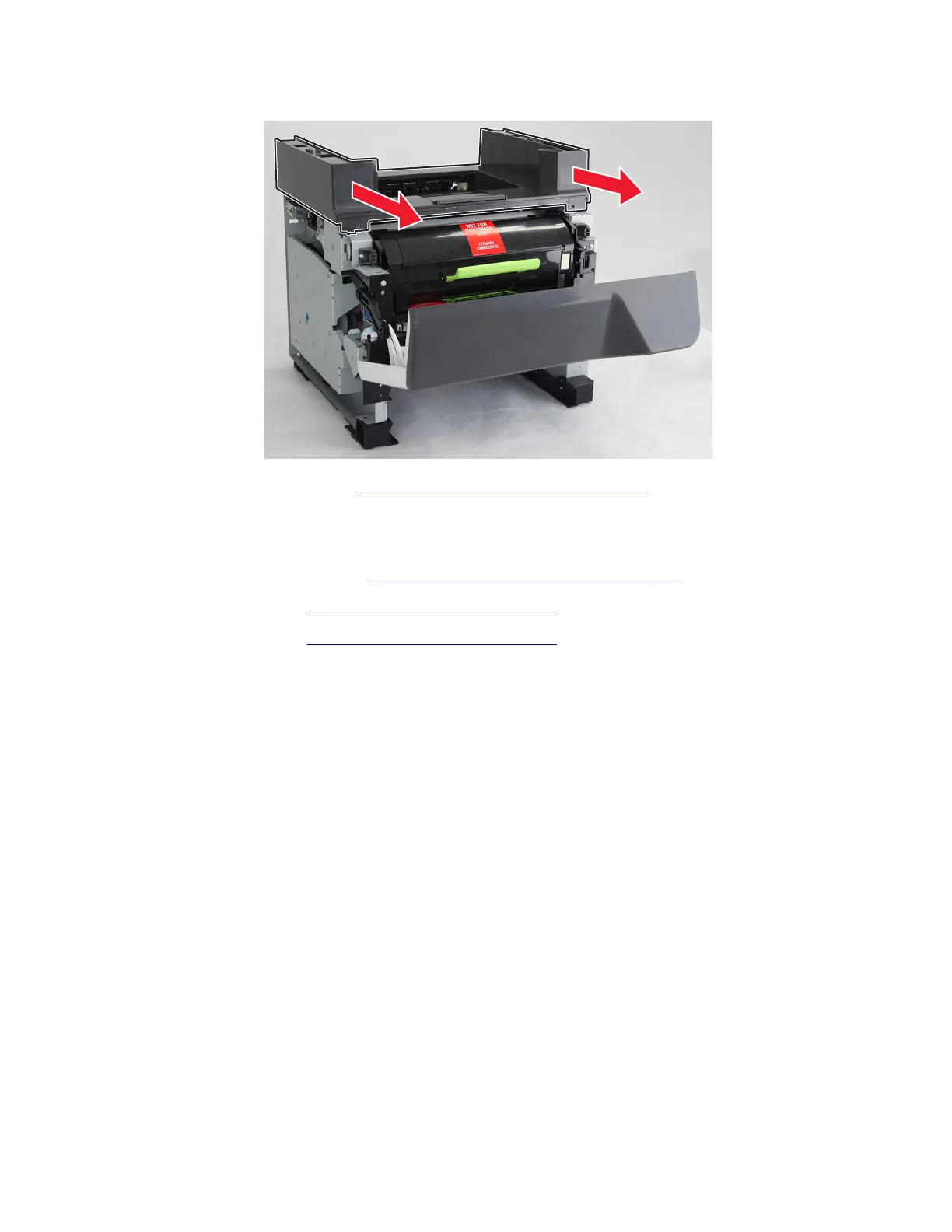

9 Slide the cover to the front, and then pull up to remove.
10 Remove the sensors (bin full). See “Sensor (bin full) removal” on page 301.
Sensor (bin full) removal
1 Remove the scanner assembly. See “Scanner assembly removal” on page 307.
2 Remove the left cover. See “Left cover removal” on page 226.
3 Remove the top cover. See “Top cover removal” on page 297.
7018
Parts removal
301
