4 Remove the scanner rear cover. See “Scanner rear cover removal” on page 294.

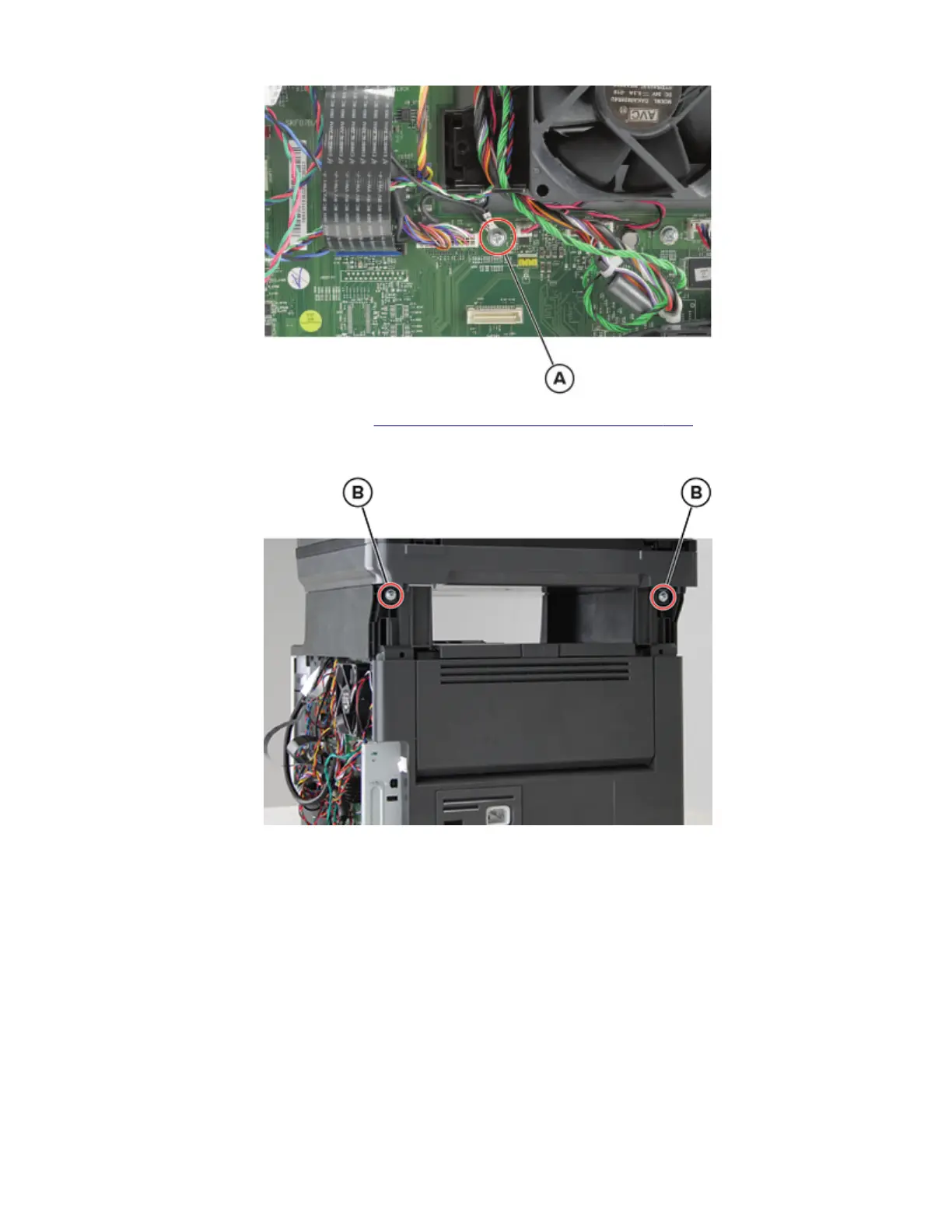

5 Remove the two screws (B).
6 Remove the flatbed scanner.
7 Remove the ADF controller board cover (C) and the holder (D), and then remove the flat cable cover (E).
7018
Parts removal
317
