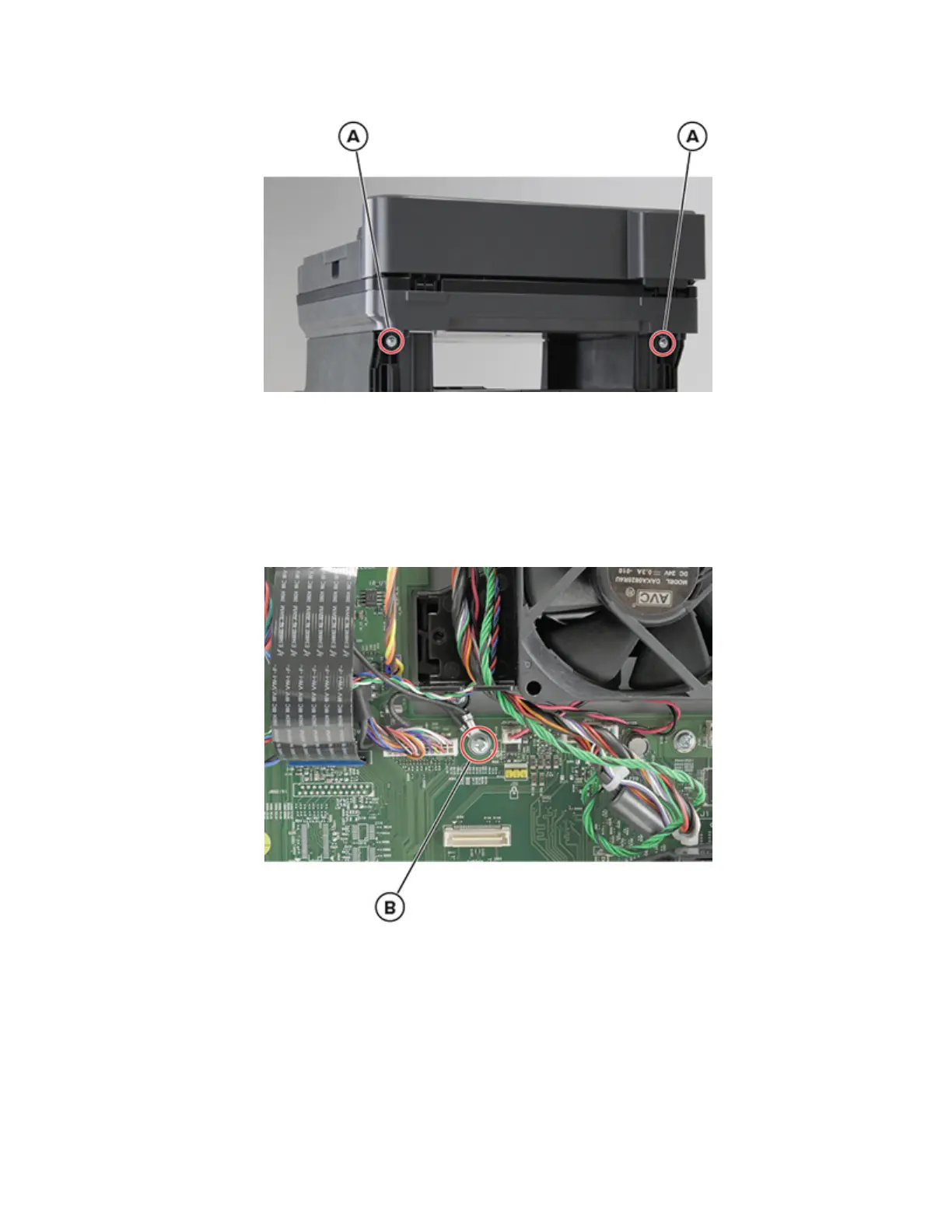

3 Remove the two screws (A).

4 From the controller board, remove the screw (B), and then disconnect the following cables:

• Control panel cable

• Speaker cable

• ADF cable

• ADF scanner cable

• CIS cable

7018

Parts removal

308
