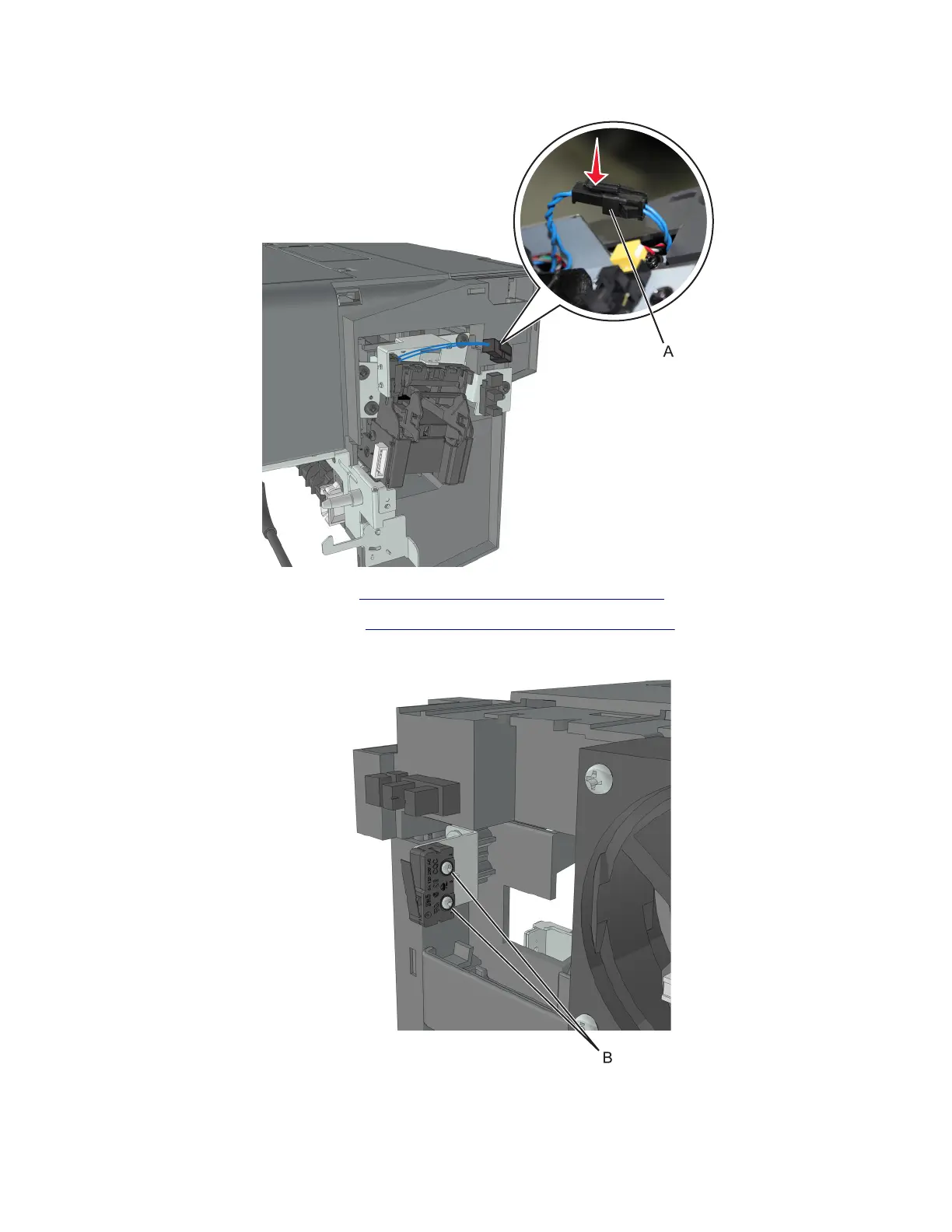

4 Disconnect the cable (A).
5 Remove the stapler left cover. See “Stapler left cover removal” on page 329.
6 Remove the stapler rear cover. See “Stapler rear cover removal” on page 337.
7 Remove the two screws (B) using a #1 Phillips screwdriver, and then remove the limit switch.
7018
Parts removal
344
