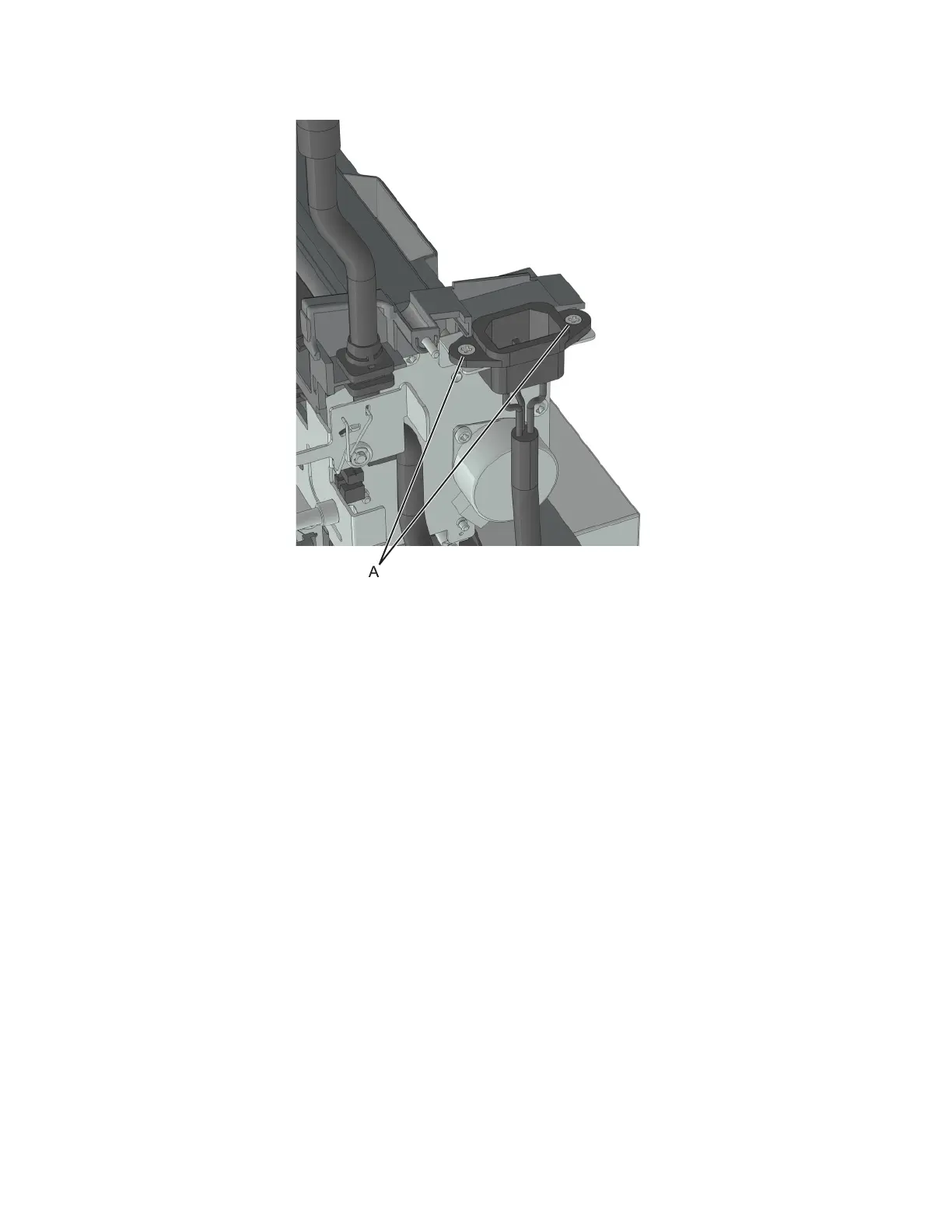

5 Remove the two screws (A), and cut the cable ties securing the power supply cable.

6 Move the power supply cable out of the way, and then disconnect the sensor and motor cables (B).

7018

Parts removal

364
