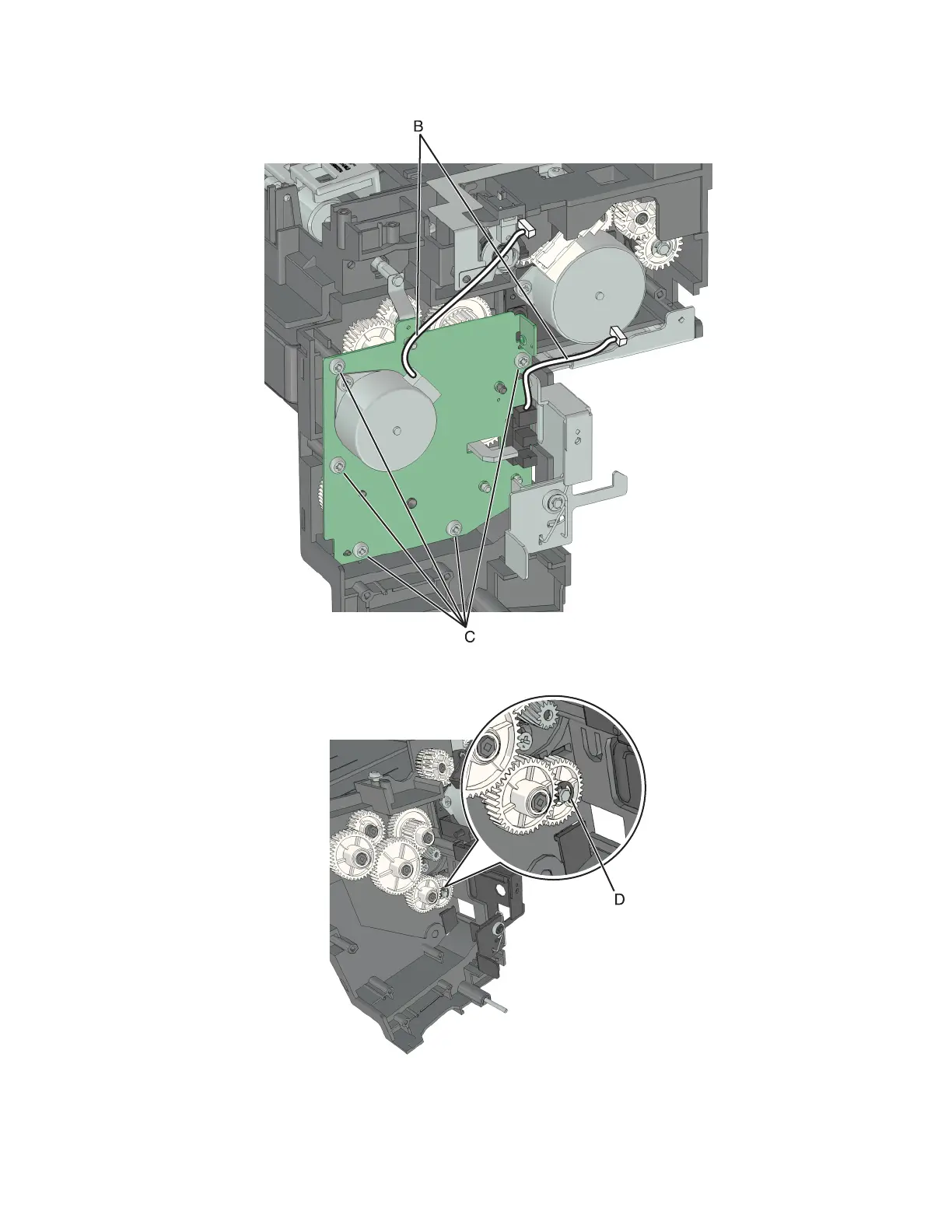

7 Remove the ﬁve screws (C) from the diverter motor assembly.

8 Release the E-clip (D) securing the lowermost gear. Pull the gears

o

their shafts to remove them.

7018
