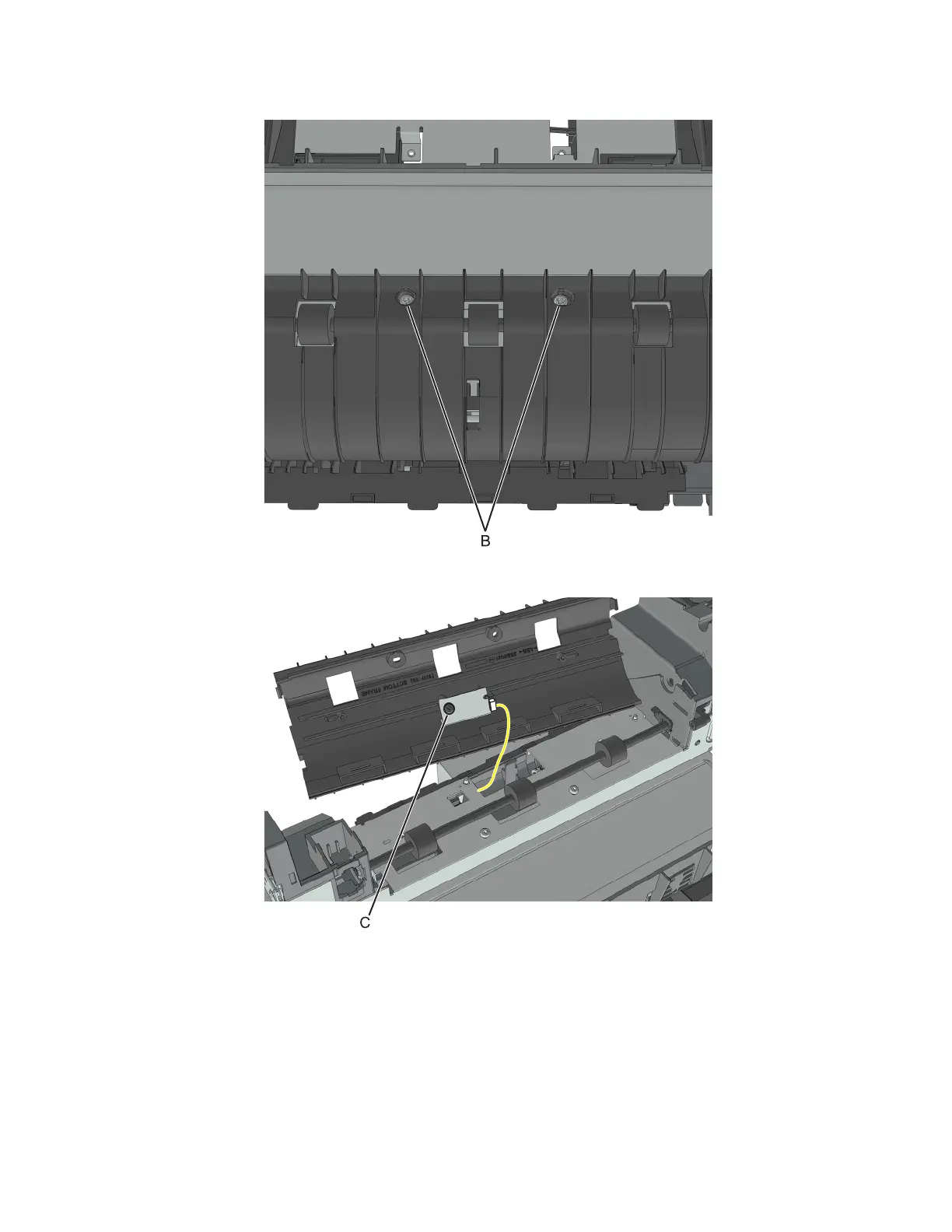

3 Remove the two screws (B) from the media input frame.

4 Remove the screw (C) securing the sensor.

7018

Parts removal

358
