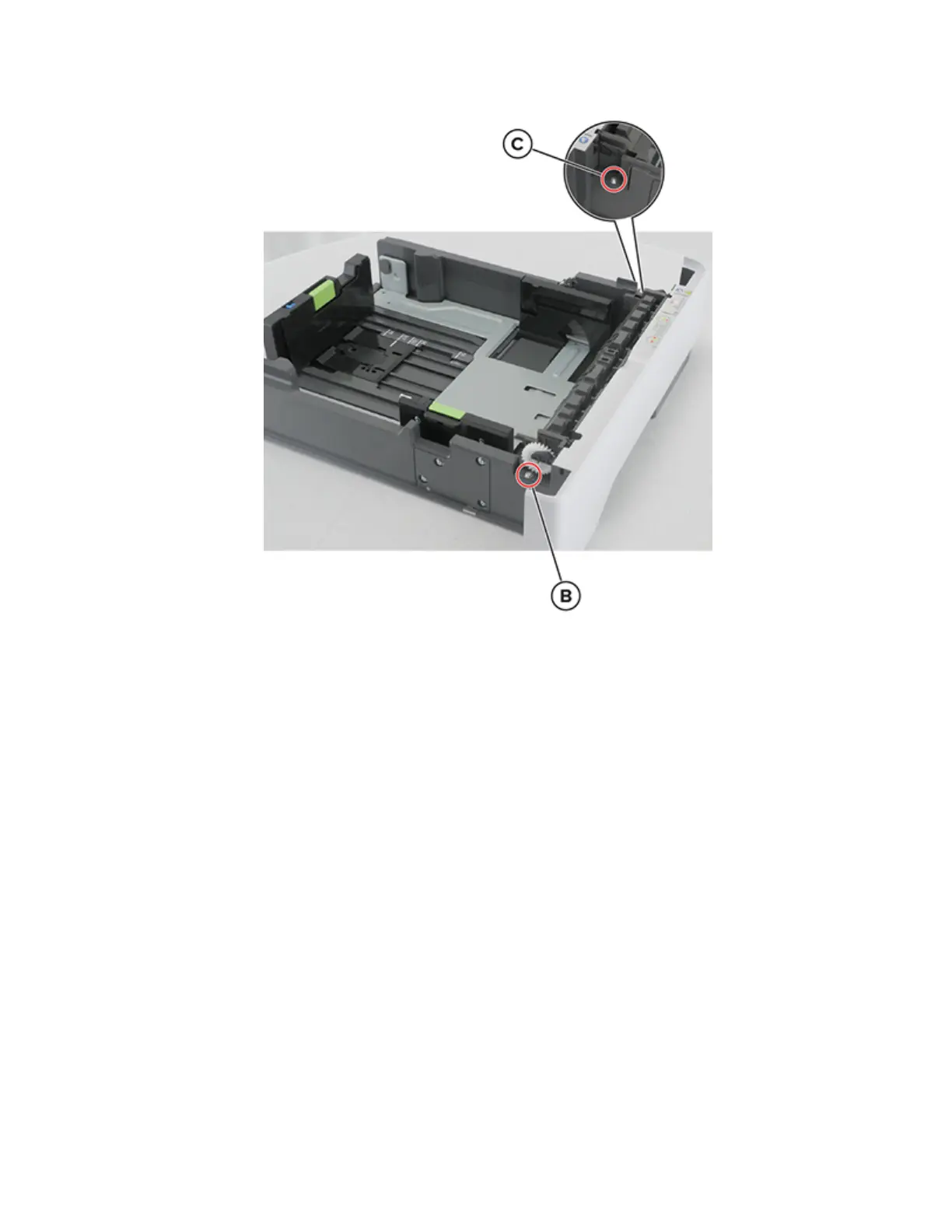

3 Remove the screw (B) on the left side. Do the same for the screw (C) on the opposite side.

4 Remove the roller assembly.

7018

Parts removal

322
