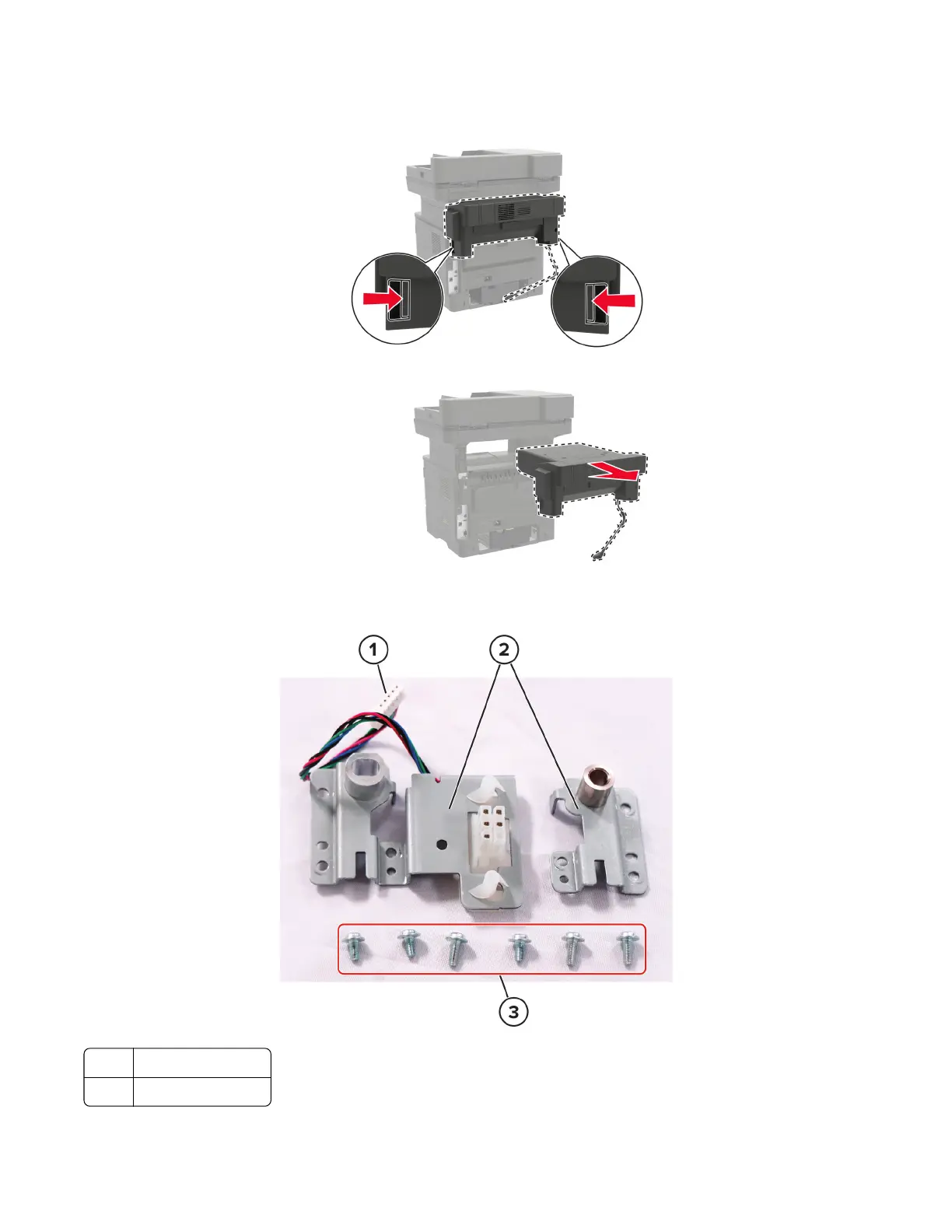

2 Press the latches to release, then pull the staple ﬁnisher o the printer.

Installing the mounting bracket kit

1 Stapler cable

2 Mounting brackets

7018

Parts removal

324
