Lexmark XM3250 - Page 325

3 Screws
1 Remove the scanner rear cover. See “Scanner rear cover removal” on page 294.
2 Remove the rear cover. See “Rear door and cover removal” on page 295.
3 Remove the right cover. See “Right cover removal” on page 237.

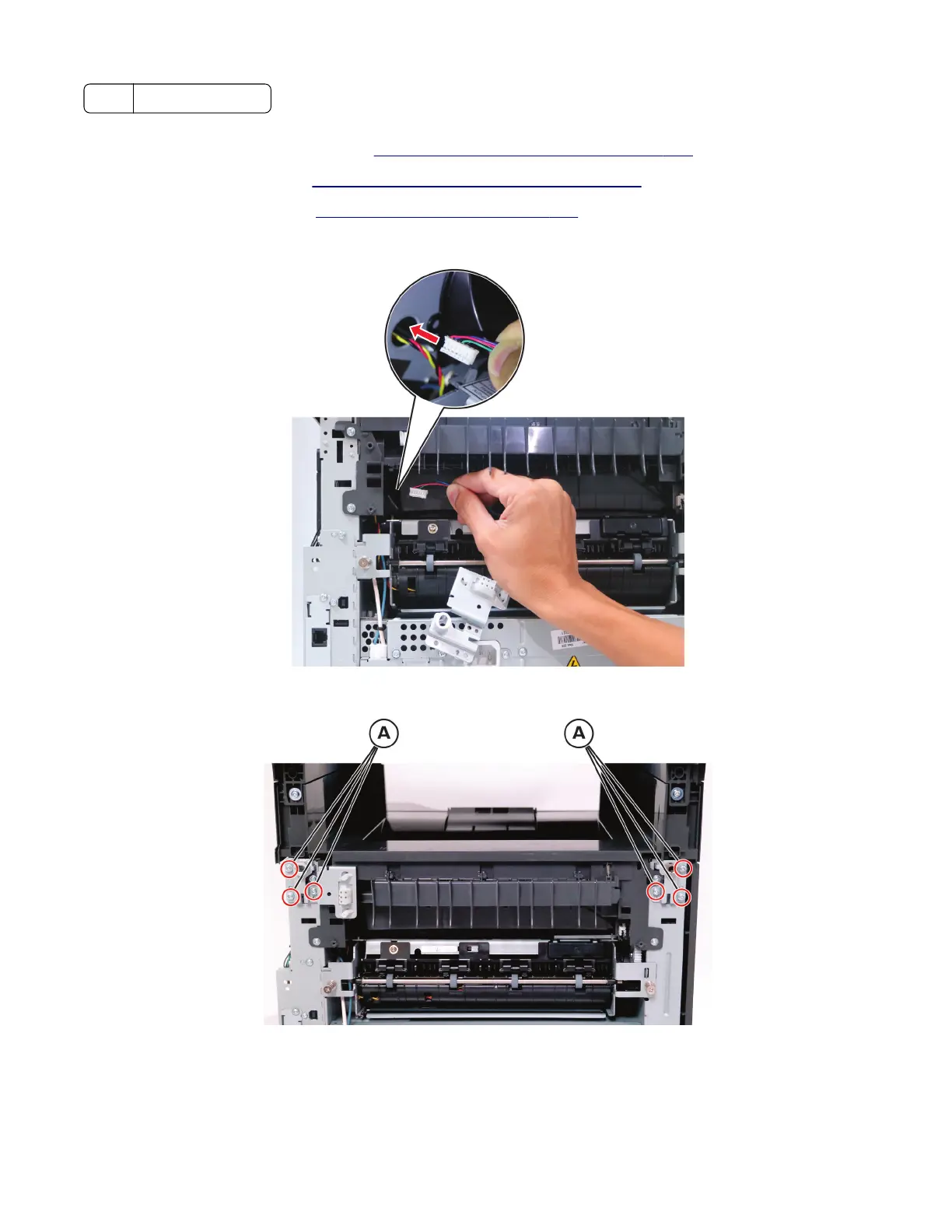

4 Route the stapler cable through the redrive assembly and into the hole towards the controller board.
5 Install the mounting brackets securing each with three screws (A).
7018
Parts removal
