Lexmark XM3250 - Page 351

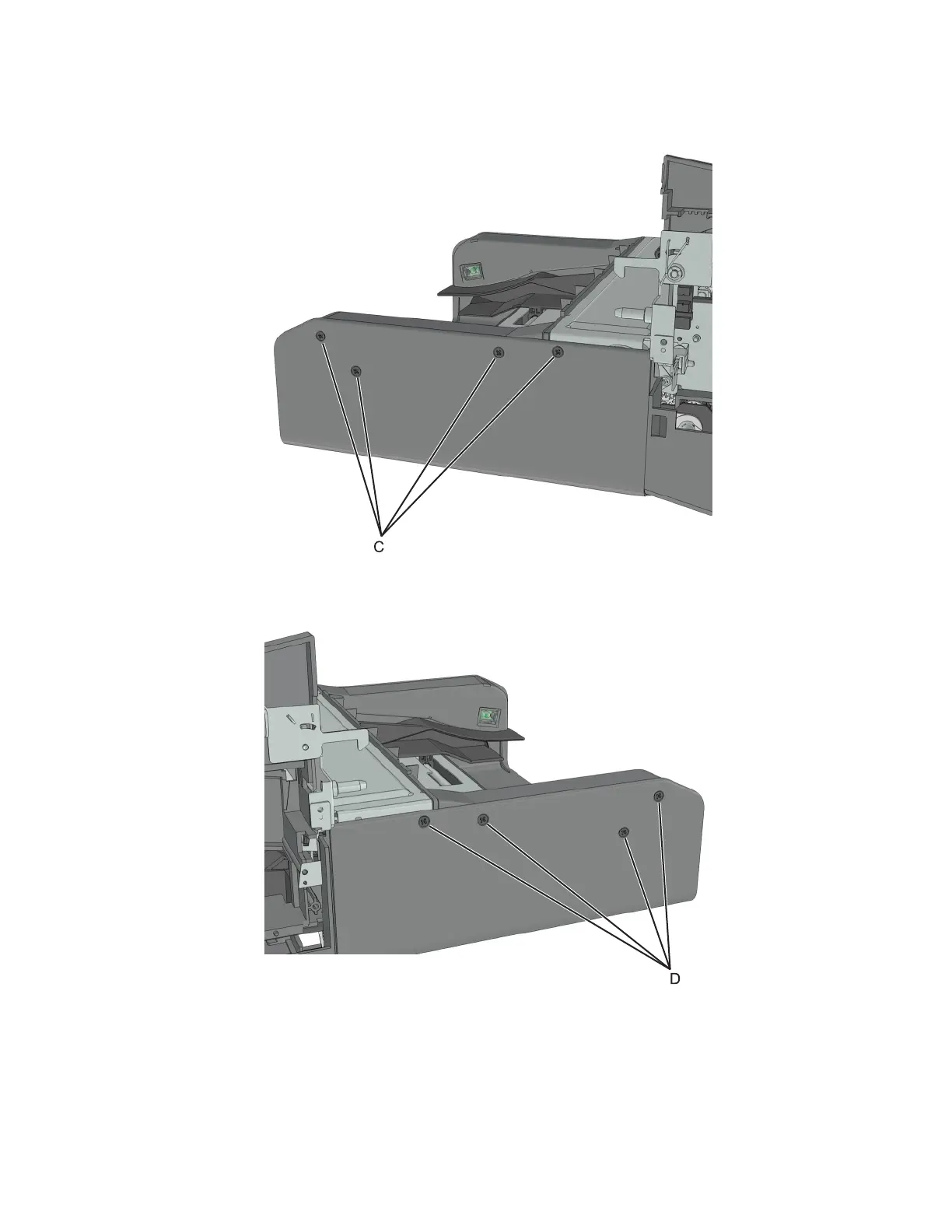

8 Remove the four screws (C) from the left side of the cover.
9 Remove the four screws (D) from the right side of the cover.
10 Lift the cover, then release the cables routed through the top cover.
Note: Pay attention to the original routing of the cables.
11 Remove the top cover.
7018
Parts removal
351
