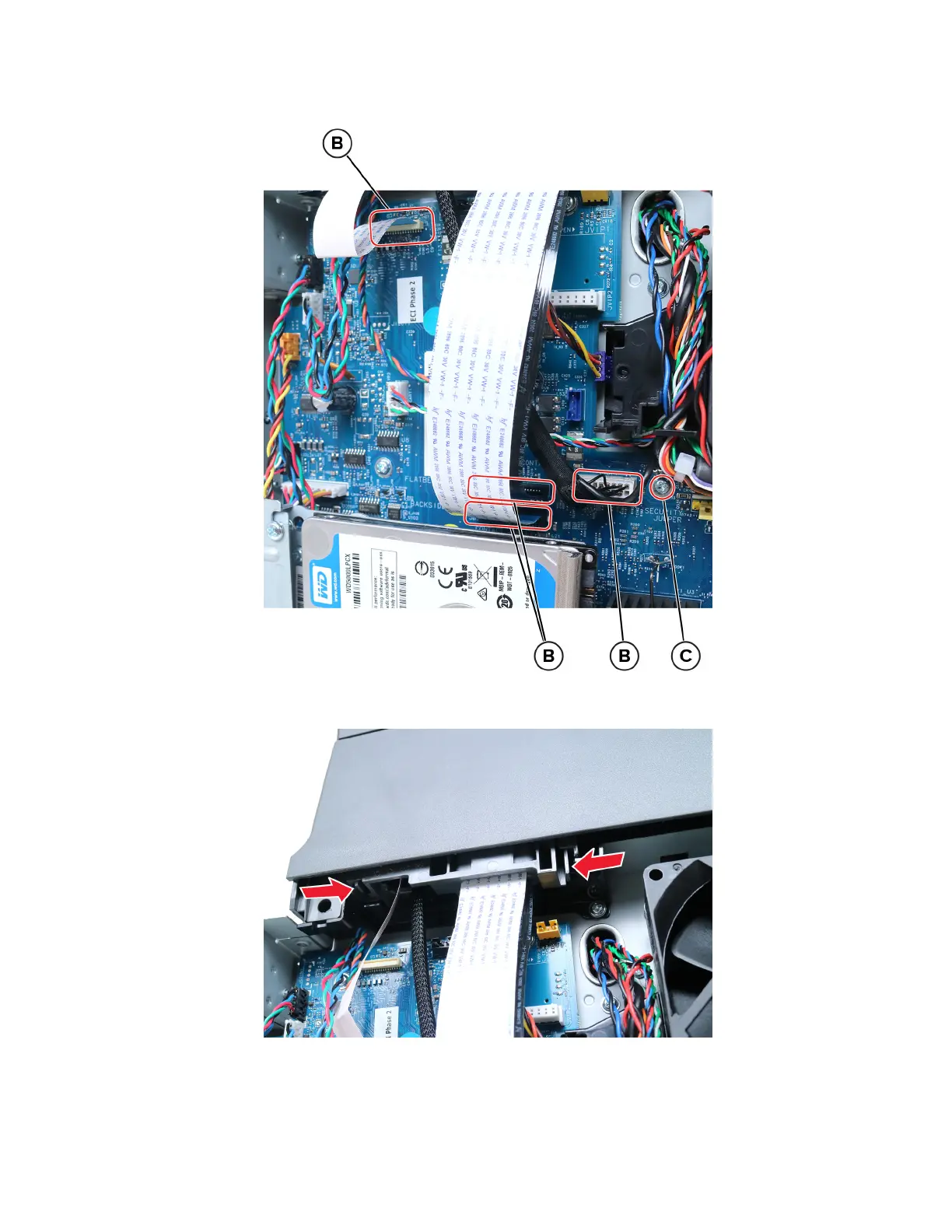

5 Disconnect the four cables (B), and then remove the ground screw (C).

6 Release the latches, and then remove the toroid holder to release the ﬂat cables.
