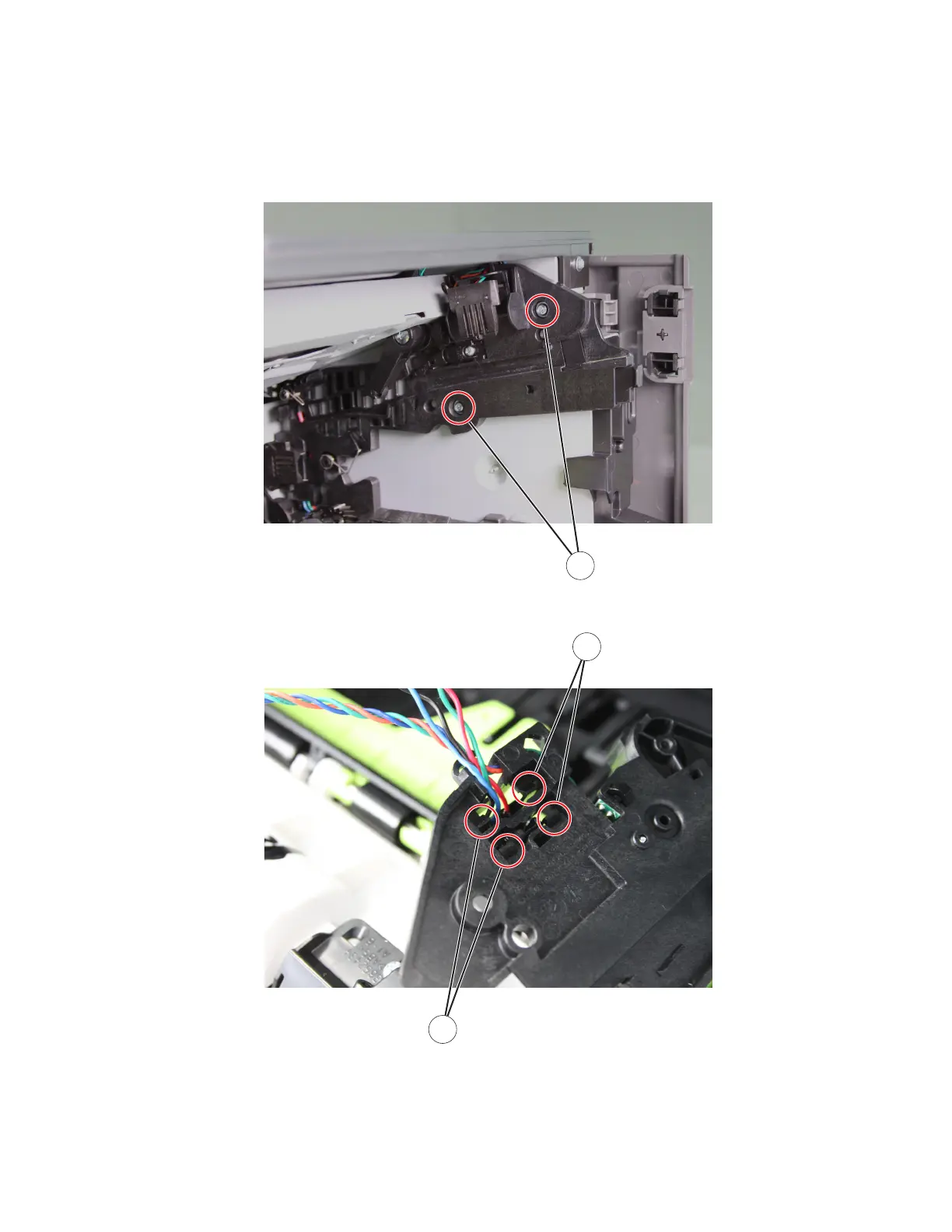

4 Remove the two screws (B), and then lower the right cartridge guide.
5 Slightly pull the right cartridge guide to detach it.
Warning—Potential Damage: To avoid damaging the right cartridge guide, do not cut or disconnect the
cable at the rear of the cartridge guide. Leave the cartridge guide dangling.
B
6 Release the four latches (C).
C
C
7 Remove the toner cartridge smart chip contact.
Note: Note the original position of the spring (D), actuator (E), and lock (F).
