Removal procedure

1 Remove the control panel front cover. See “Control panel covers and buttons removal” on page 257.

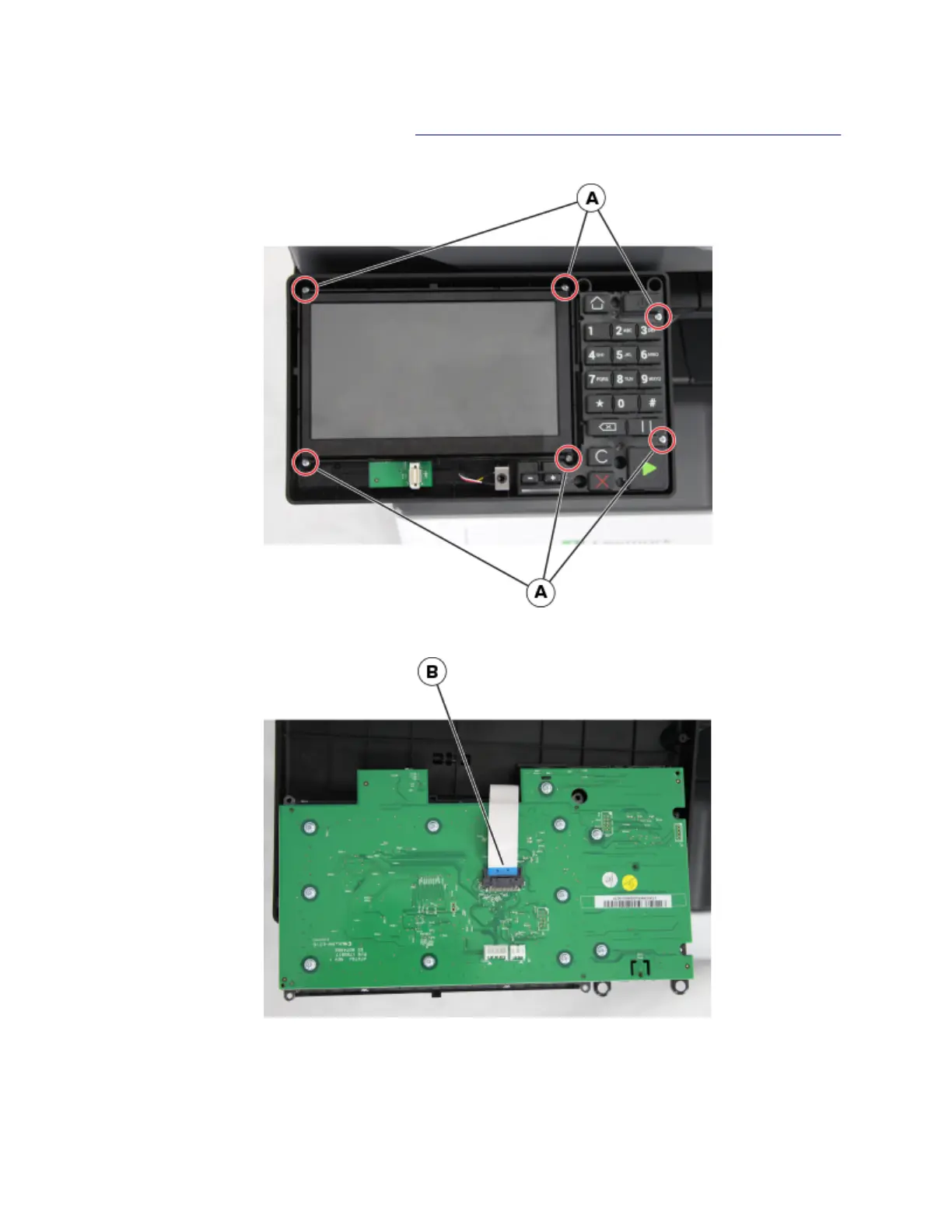

2 Remove the six screws (A).

3 Disconnect the control panel cable (B).

7018

Parts removal

256
