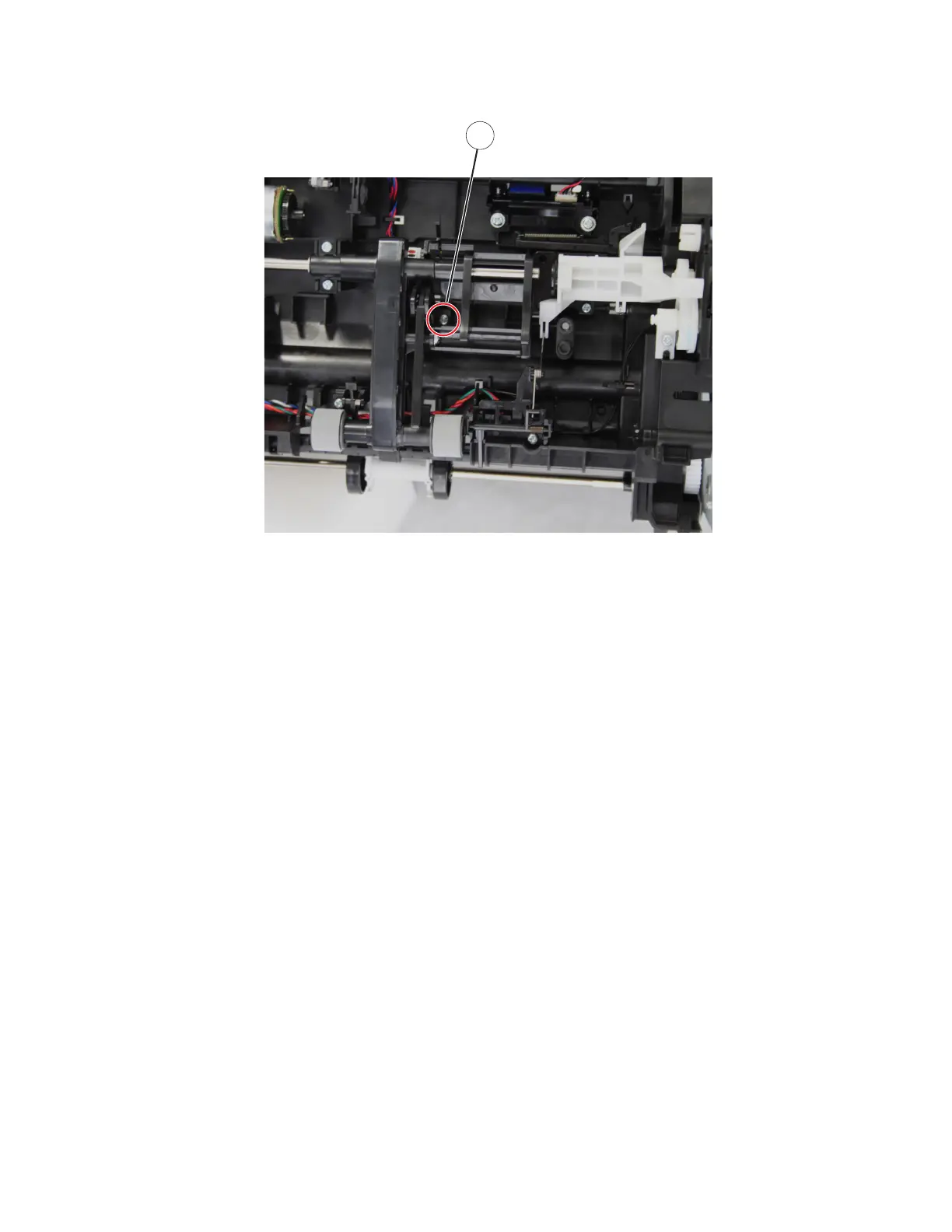

4 Remove the screw (A).
A
5 Lift the pick roller assembly, and then rotate the sensor flag to remove it.
Installation notes:
a Lift the pick roller assembly.
b Install the flag as shown.
Notes:
• Make sure that the bar (A) is between the fingers of the flag (B).
• Make sure that the two bosses (C) are inside the holes.
• Make sure that the finger (D) is aligned with the sensor (E).
