Lexmark XM3250 - Page 298

3 Remove the scanner rear cover. See “Scanner rear cover removal” on page 294.

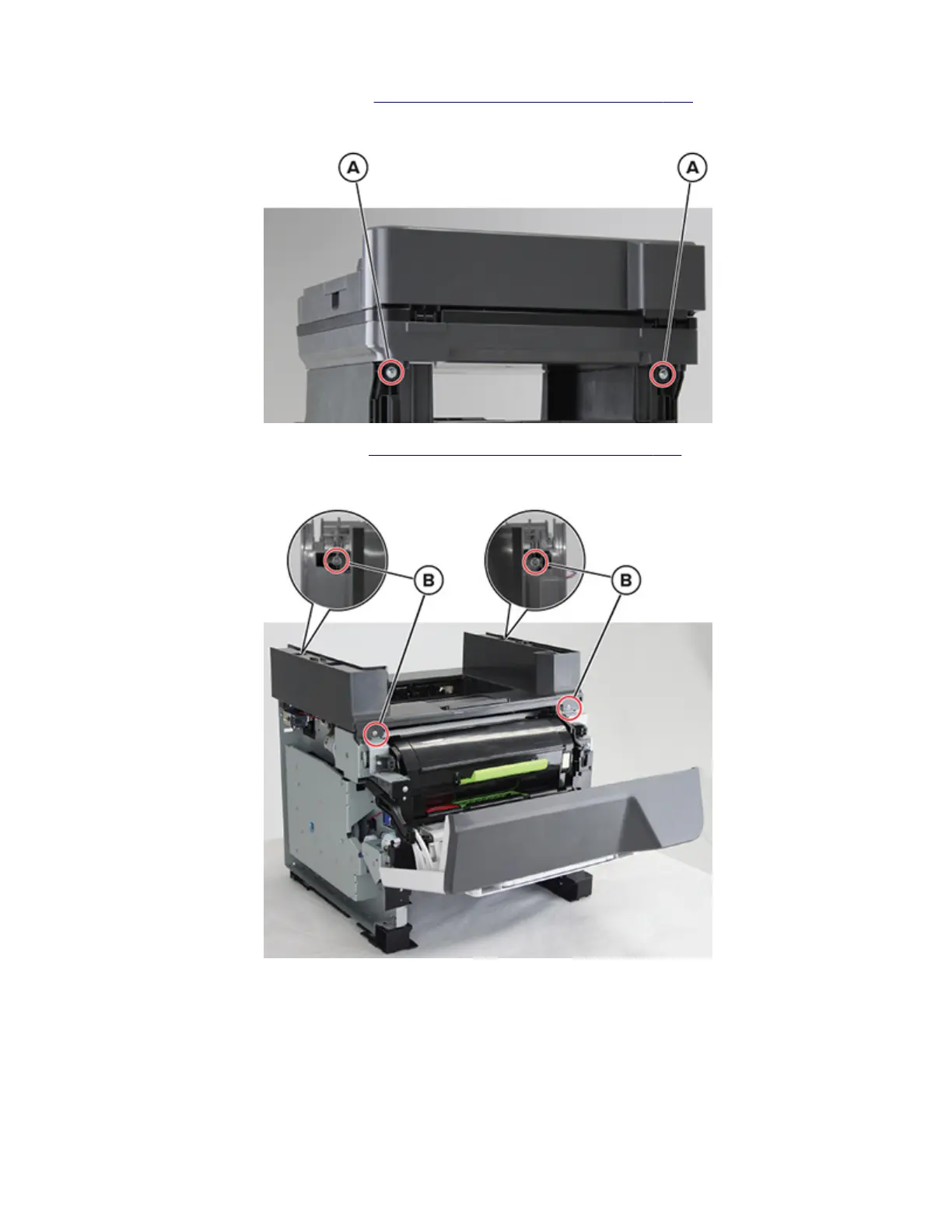

4 Remove the two screws (A).
5 Remove the scanner assembly. See “Scanner assembly removal” on page 307.
6 Remove the four screws (B).
7018
Parts removal
298
