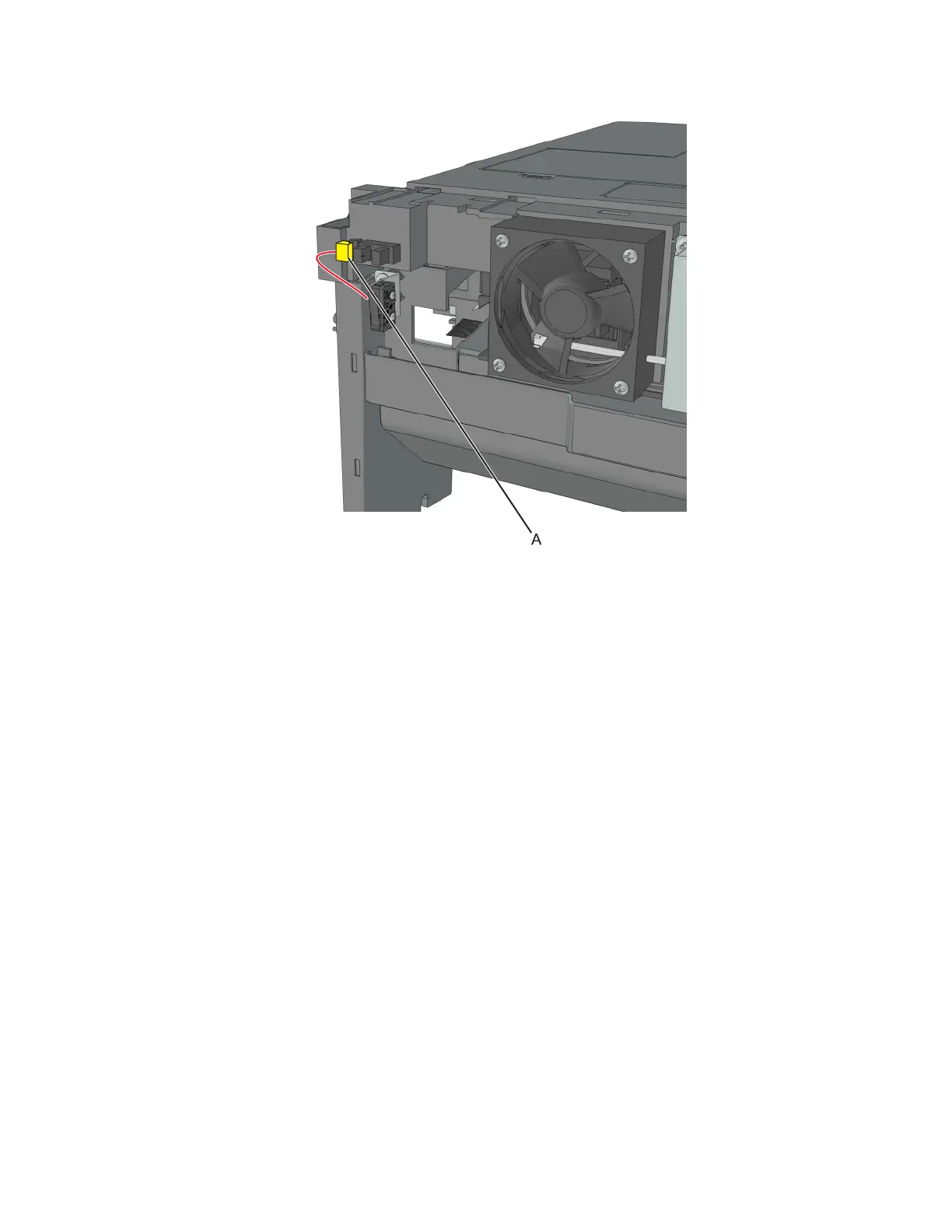

4 Disconnect the sensor cable (A).

5 Release the latches, and pull the sensor o the stapler.

7018

Parts removal

339
