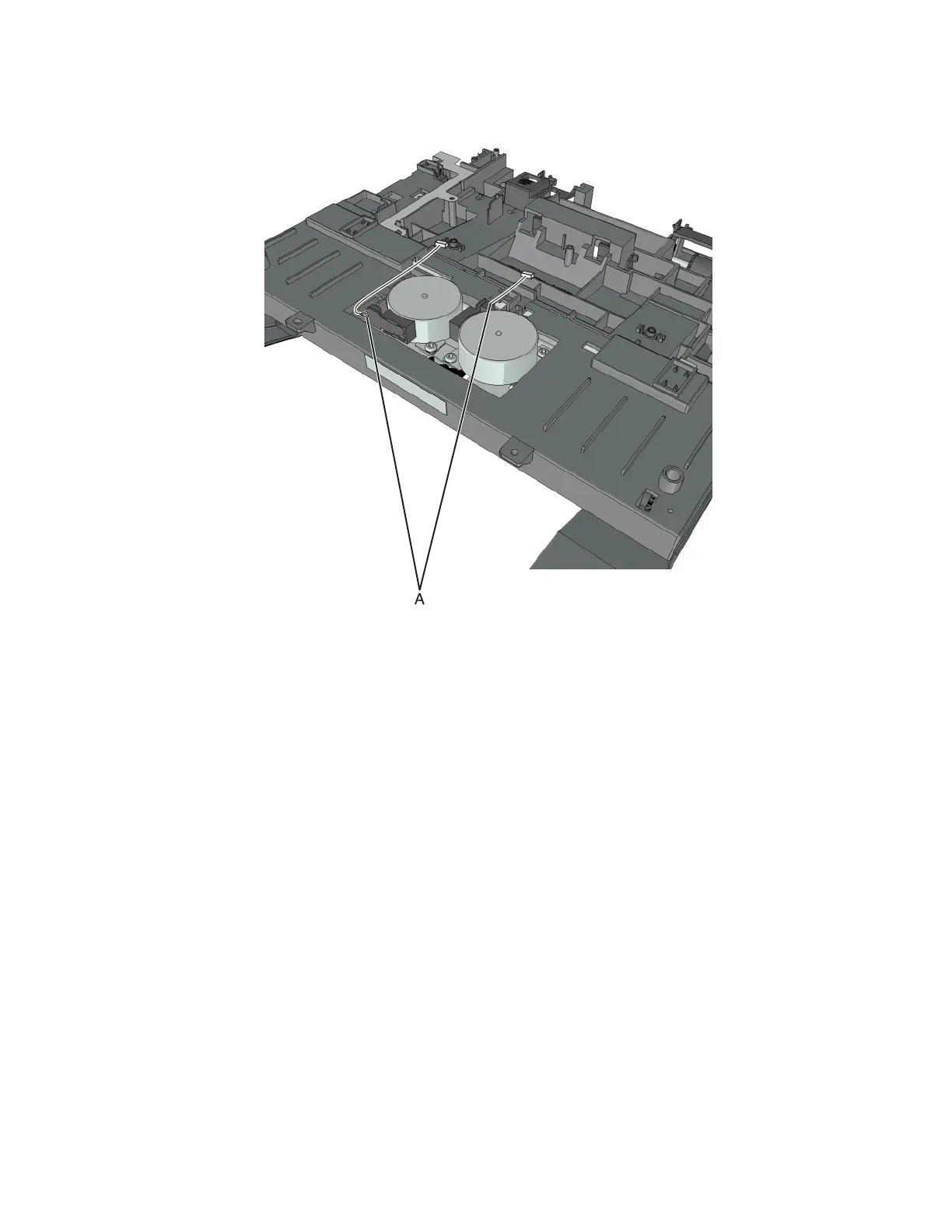

10 Disconnect the tamper motor cables (A).

11 Move the tampers to access the screws (B) at the bottom.

7018

Parts removal

361
