Learning Advanced Features
Code
Description

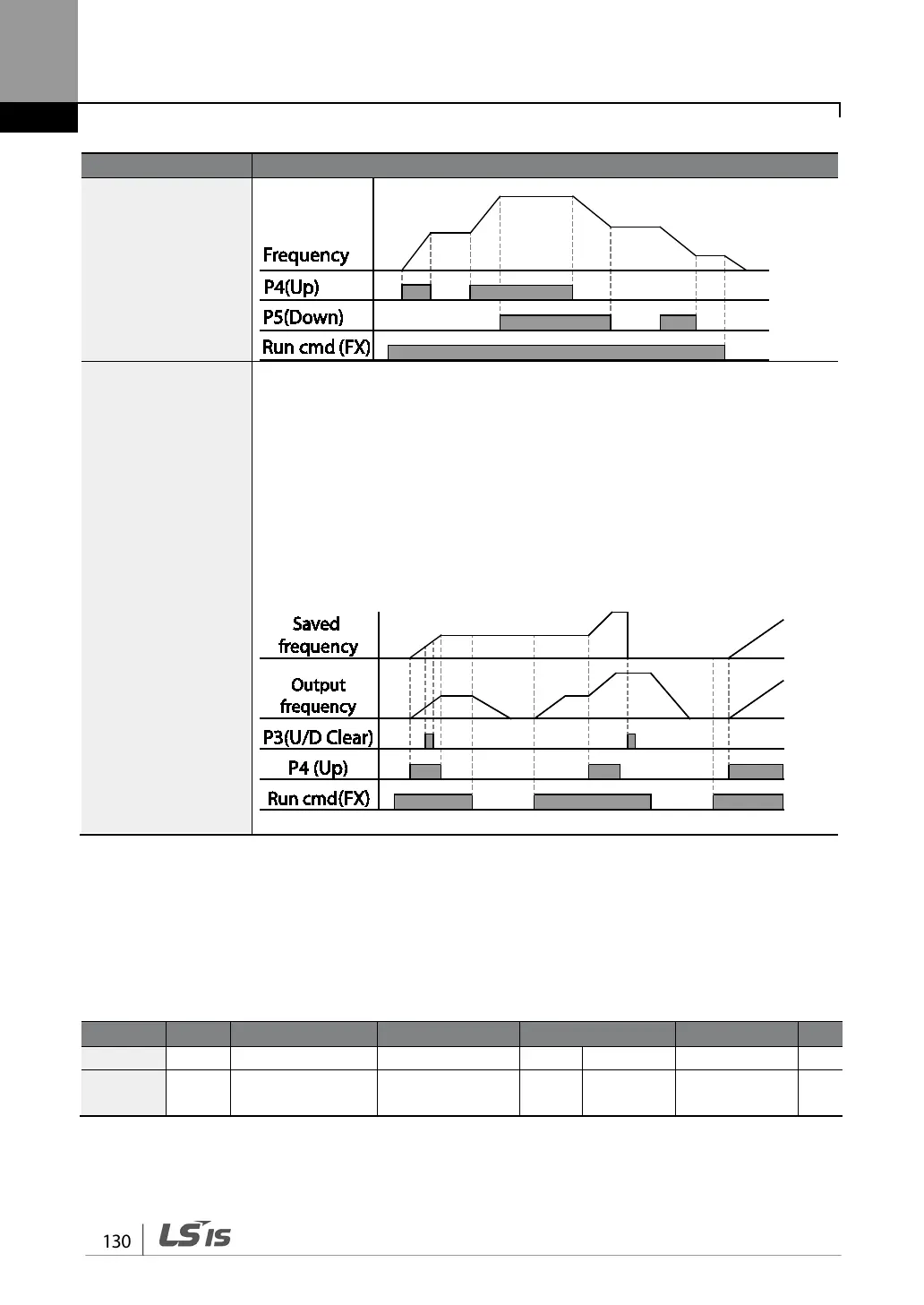

Ad.65 U/D Save Mode
During a constant speed operation, the operating frequency is saved
automatically in the following conditions: the operation command (Fx or Rx) is
off, a fault trip occurs, or the power is off.
When the operation command is turned on again, or when the inverter regains
the power source or resumes to a normal operation from a fault trip, it resumes
operation at the saved frequency. To delete the saved frequency, use the multi-
function terminal block. Set one of the multi-function terminals to 20 (U/D
Clear) and apply signals to it during constant speed operation. The saved
frequency and the up-down operation configuration will be deleted.
5.4 3-Wire Operation
The 3-wire operation latches the signal input (the signal stays on after the button is released), and
is used when operating the inverter with a push button.
Group
Code
Name
LCD Display
Parameter Setting
Setting Range
Unit
Operation
drv
Command source
Cmd Source*
1
Fx/Rx - 1
-
-
In
65-71
Px terminal
configuration
Px Define(Px: P1-
P5)
14
3-Wire
-
-
* Displayed under DRV-06 in an LCD keypad.
