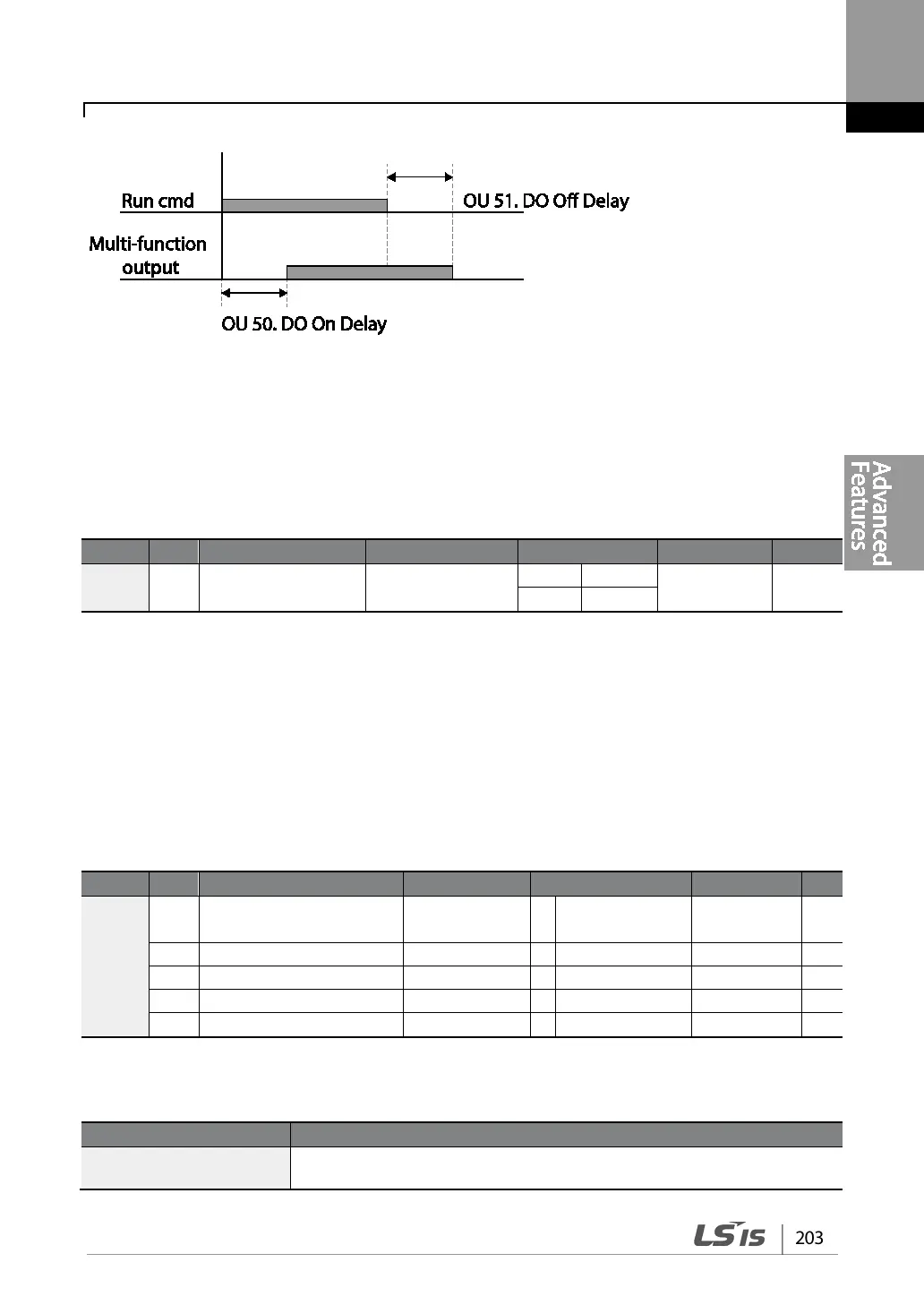

Learning Advanced Features
203
5.36 Keypad Language Settings
Select the language to be displayed on the LCD keypad. Keypad S/W Ver 1.04 and above provides
language selections.
Group
Code
Name
LCD Display
Parameter Setting
Setting Range
Unit
CNF* 01
Select keypad
language
Language Sel
0
English
- -
1
Korean
* Available on LCD keypad only.
5.37 Operation State Monitor
The inverter’s operation condition can be monitored using the LCD keypad. If the monitoring
option is selected in config (CNF) mode, a maximum of four items can be monitored
simultaneously. Monitoring mode displays three different items on the LCD keypad, but only one
item can be displayed in the status window at a time.
Group
Code
Name
LCD Display
Parameter Setting
Setting Range
Unit
CNF*
20
Display item condition
display window
Anytime Para 0 Frequency - -
21
Monitor mode display 1
Monitor Line-1
0
Frequency
-
Hz
22
Monitor mode display 2
Monitor Line-2
2
Output Current
-
A
23
Monitor mode display 3
Monitor Line-3
3
Output Voltage
-
V
24
Monitor mode initialize
Mon Mode Init
0
No
-
-
*Available on LCD keypad only.
Operation State Monitor Setting Details
Code
Description
CNF-20 AnyTime Para
Select items to display on the top-right side of the LCD keypad screen.
Choose the parameter settings based on the information to be displayed.
