MD Helicopters MD Explorer - Page 246

CSP−900RMM−2 MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 218
Revision 35
06-00-00


9G06-012A
PR120
PL120

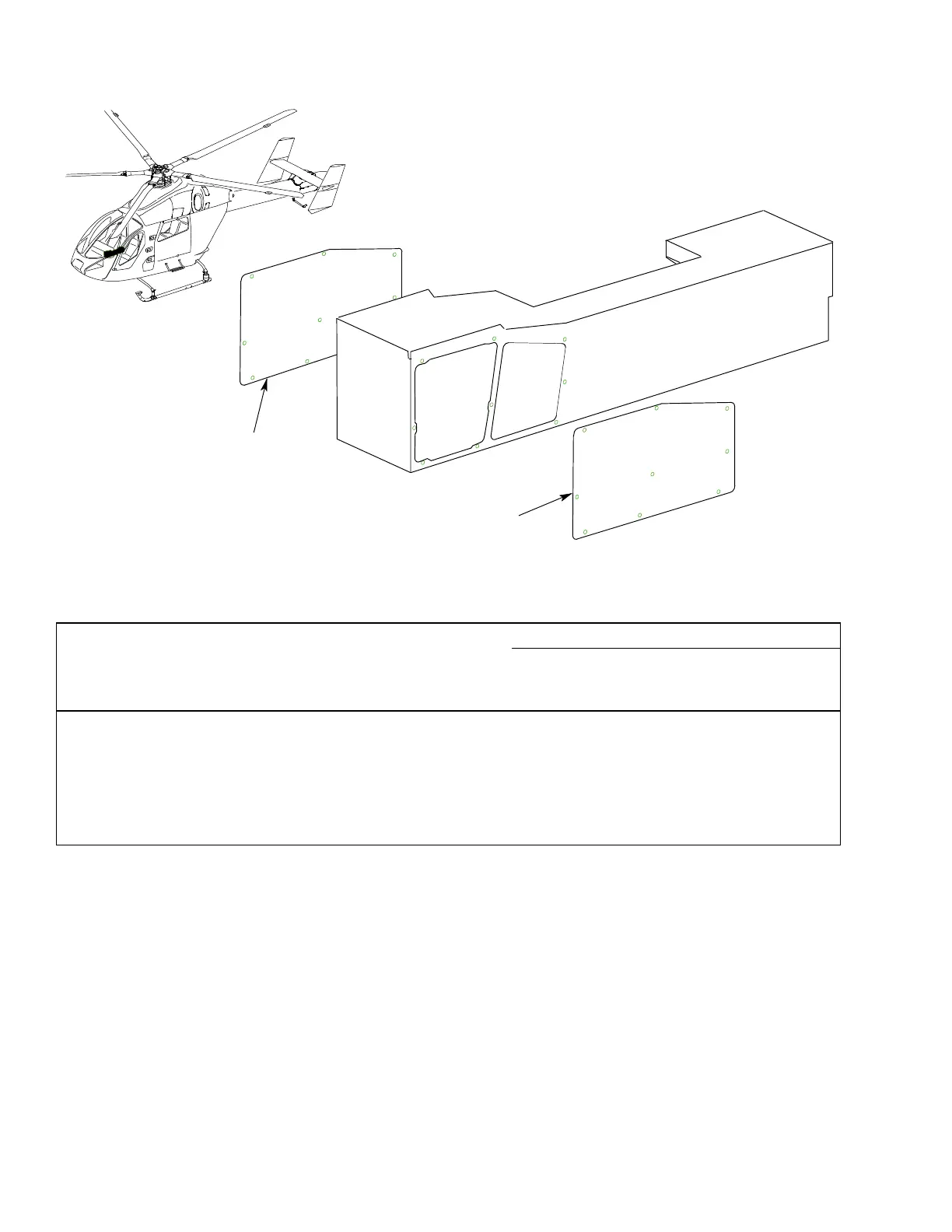

Figure 212. Pedestal Access Panels
Legend (Ref. Figure 212)
Item
No.
Name Permits Access To
Removal and Installation
Quantity Type
Method
Ref.
Figure 204
PL120 Panel Wire Harness, Forward
Interconnect Panel (Relays),
Ground Modules
9 Camloc U
PR120 Panel Wire Harness, Forward
Interconnect Panel (TB2,
TB3,TB4)
9 Camloc U
