2 — Baker DX Instrument Overview
Baker DX Series testers provide a comprehensive, yet modular set of high-voltage motor testing
tools in a compact, lightweight, easy-to-use system. These testers perform Surge, Insulation
Resistance (IR), Inductance, Capacitance, Megohm, Dielectric Absorption (DA), Polarization Index
(PI), and High Potential (HiPot) tests. These units also perform coil and DC motor tests, and have
low-voltage circuit resistance, impedance, capacitance, phase angle, and dissipation
factor/quality factor testing capabilities.
Baker DX testers are compatible with the Baker PP30, Baker PP40, and Baker PP85 power pack
systems for very high-voltage testing, and with the Baker ZTX for armature testing. The DX
family is also compatible with external safety lights and Equipment stop boxes.

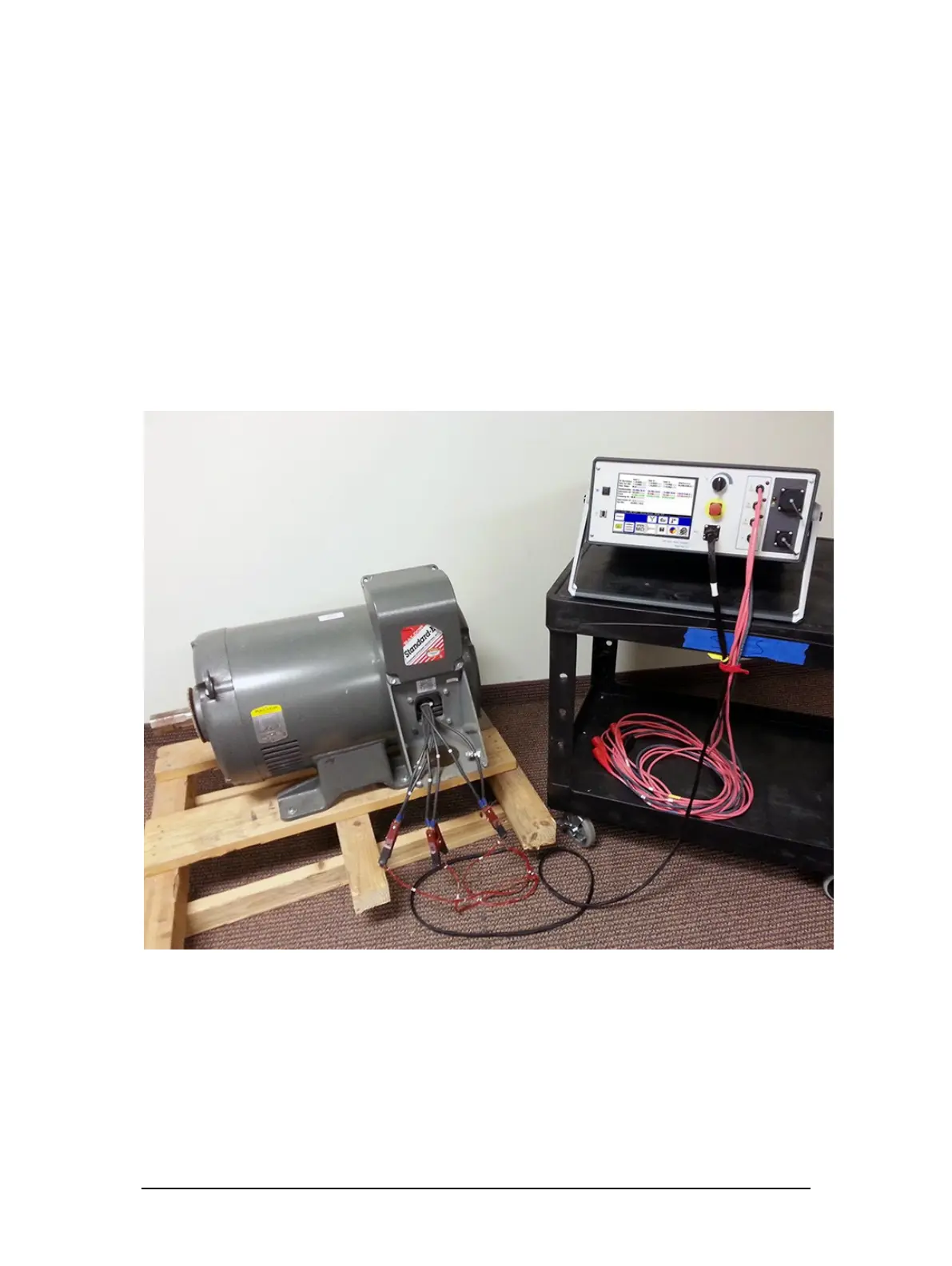

Figure 4. Baker DX connected to large motor with low-voltage test connectors for RLC testing;
high-voltage connectors stored safely below cart.
