Procedures for Testing with the DX Host
megger.com 65
Inductance, Impedance, Phase Angle, and D/Q Tests Procedures
This procedure starts where the resistance test was completed.
With coil inductance tests, the Baker DX looks for imbalances and variations between the coil
phases. The DX performs these tests at a single specified frequency.

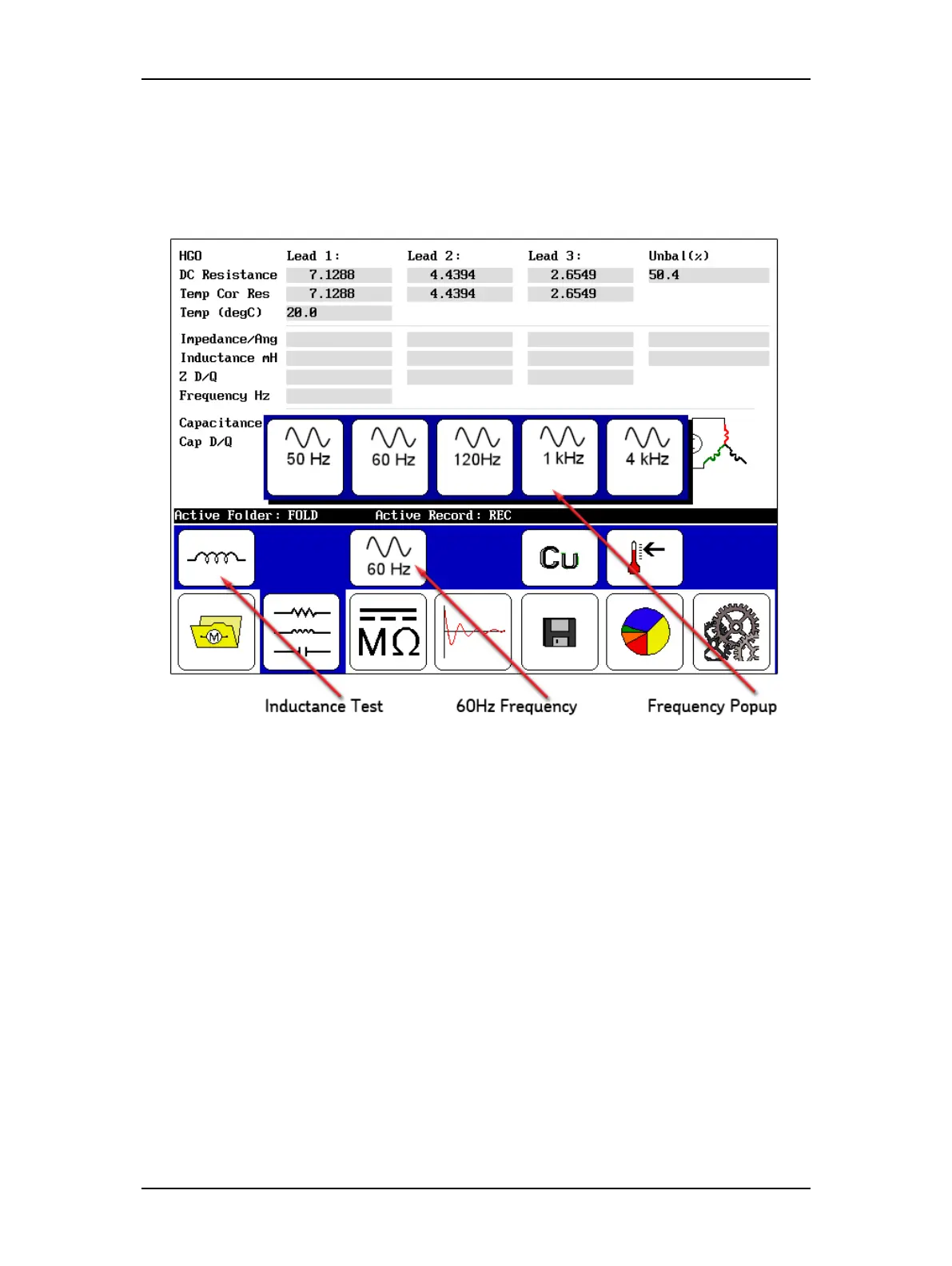

Figure 69. Inductance test start screen.
1. Touch the RLC Test Selection icon to change it to show the Inductance Test icon.
2. The submenu changes as shown in the example above with a Frequency icon in the
options if you are running AC tests. In this case, touch the Frequency icon and a
popup menu appears with the selection of available frequencies.
3. Touch the 60 Hz frequency icon for this example.
To Next Page
