RIC Test Setup
1. Make a copy of this template and print or paste it on heavier stock then cut it out and
place the template over the motor to indicate angle changes during testing.
2. Larger versions of the template are available in the appendix.
3. Connect the RLC test leads to the motor under test as described earlier.

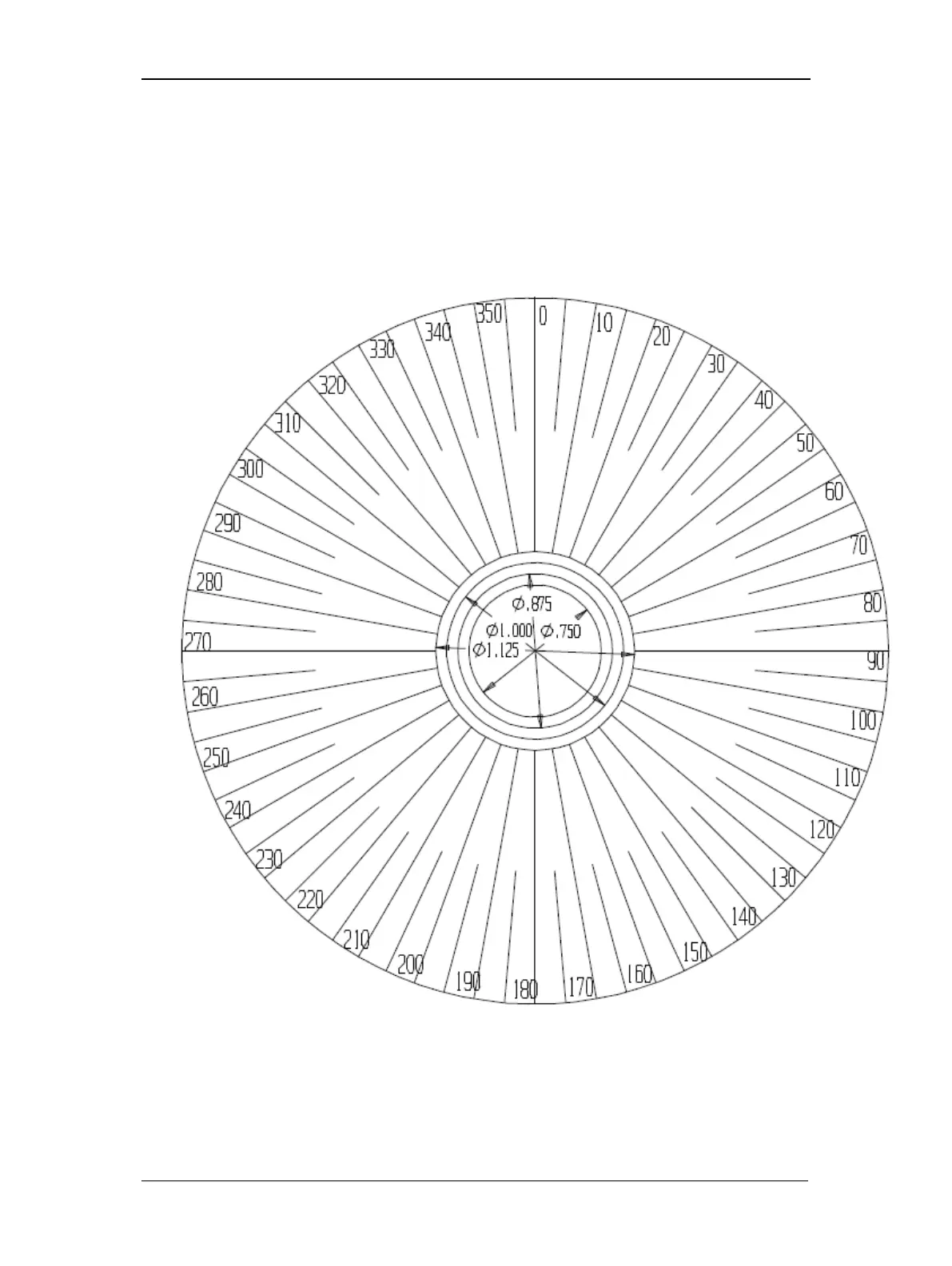

Figure 65. RIC test motor template.
