Baker DX Instrument Overview
14 Baker DX 71-030 User Guide EN V10 www.megger.com
Accessories
Footswitch
You can connect the footswitch (optional) to the Baker DX host or auxiliary units; it overrides the
Start (PTT) button. The footswitch enables hands-free use of the unit and gives you additional
operating position options.

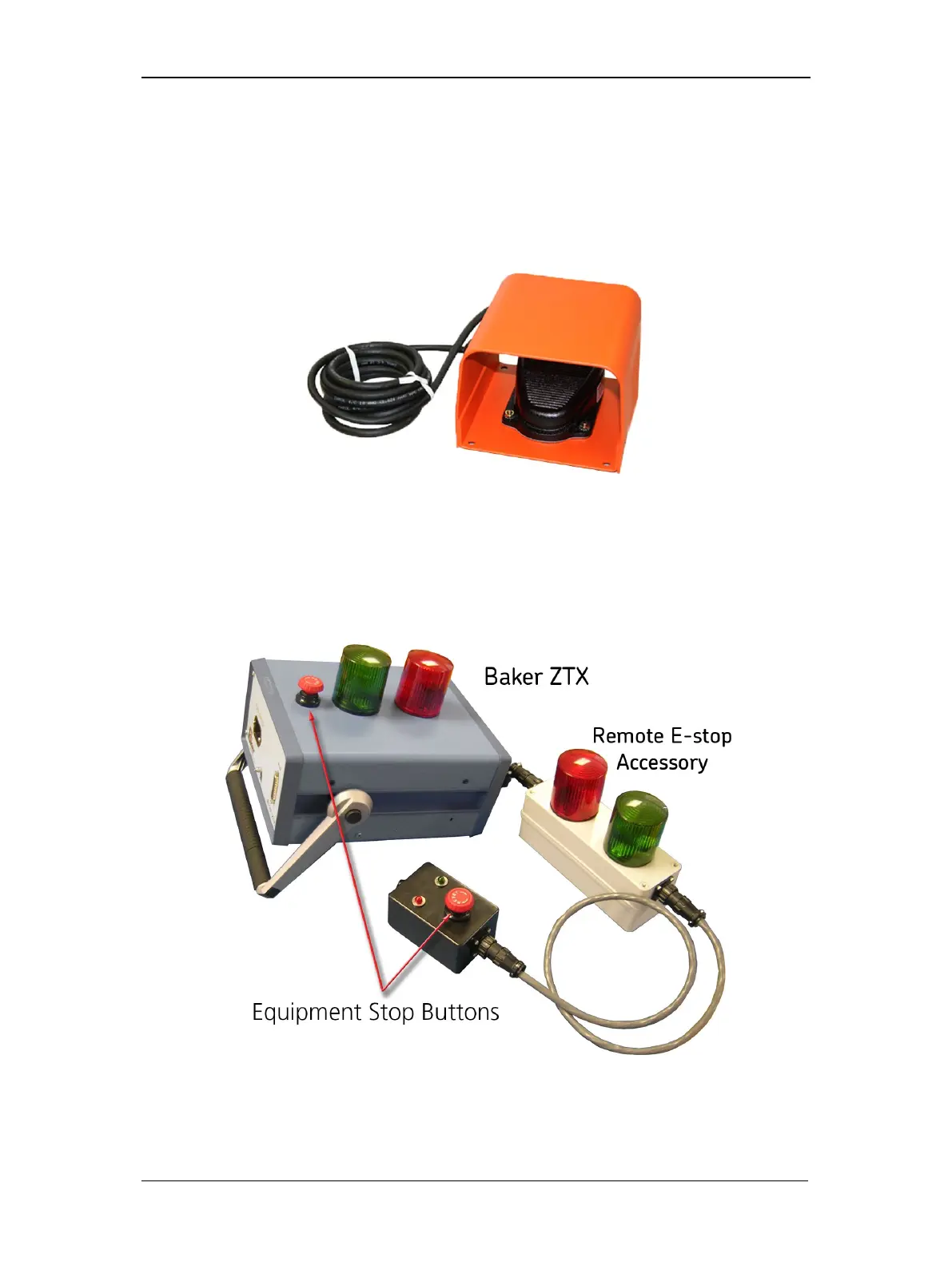

Figure 10. Footswitch accessory.
Remote E-Stop and Lights Accessory
The remote E-Stop and lights accessory provide operators with the ability to monitor test
conditions and stop testing in progress in the event of an Equipment.
Figure 11. Remote E-stop and lights accessory.
