Baker DX Instrument Overview
megger.com 13
Baker ZTX
The Baker ZTX is a high-current Surge test adaptor for DC motors, form coils, and other low-
impedance windings. The following graphics show the Baker DX with the Baker ZTX unit along
with several other options that can be used with the Baker DX unit.

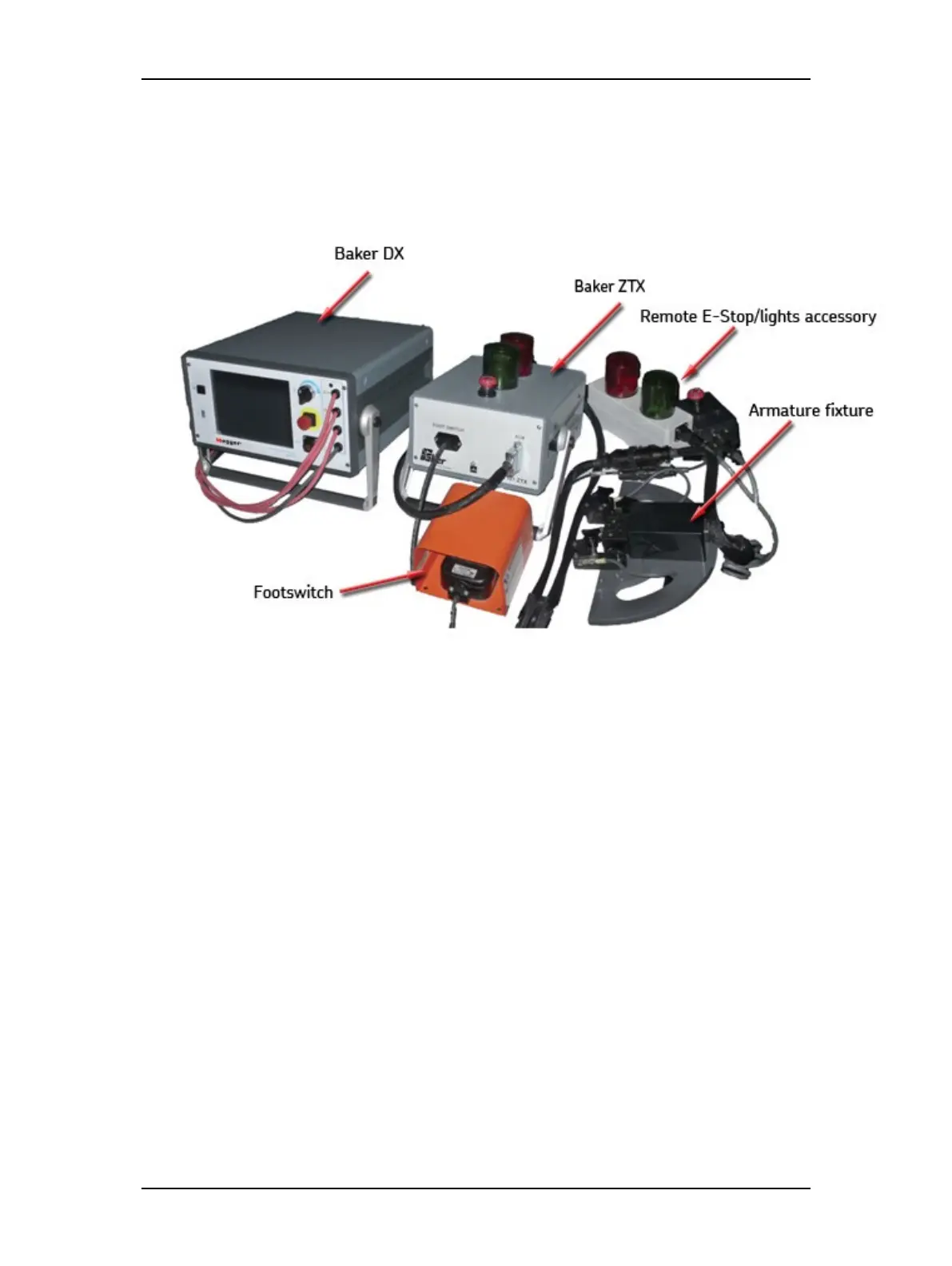

Figure 9. Baker DX and Baker ZTX accessory.
